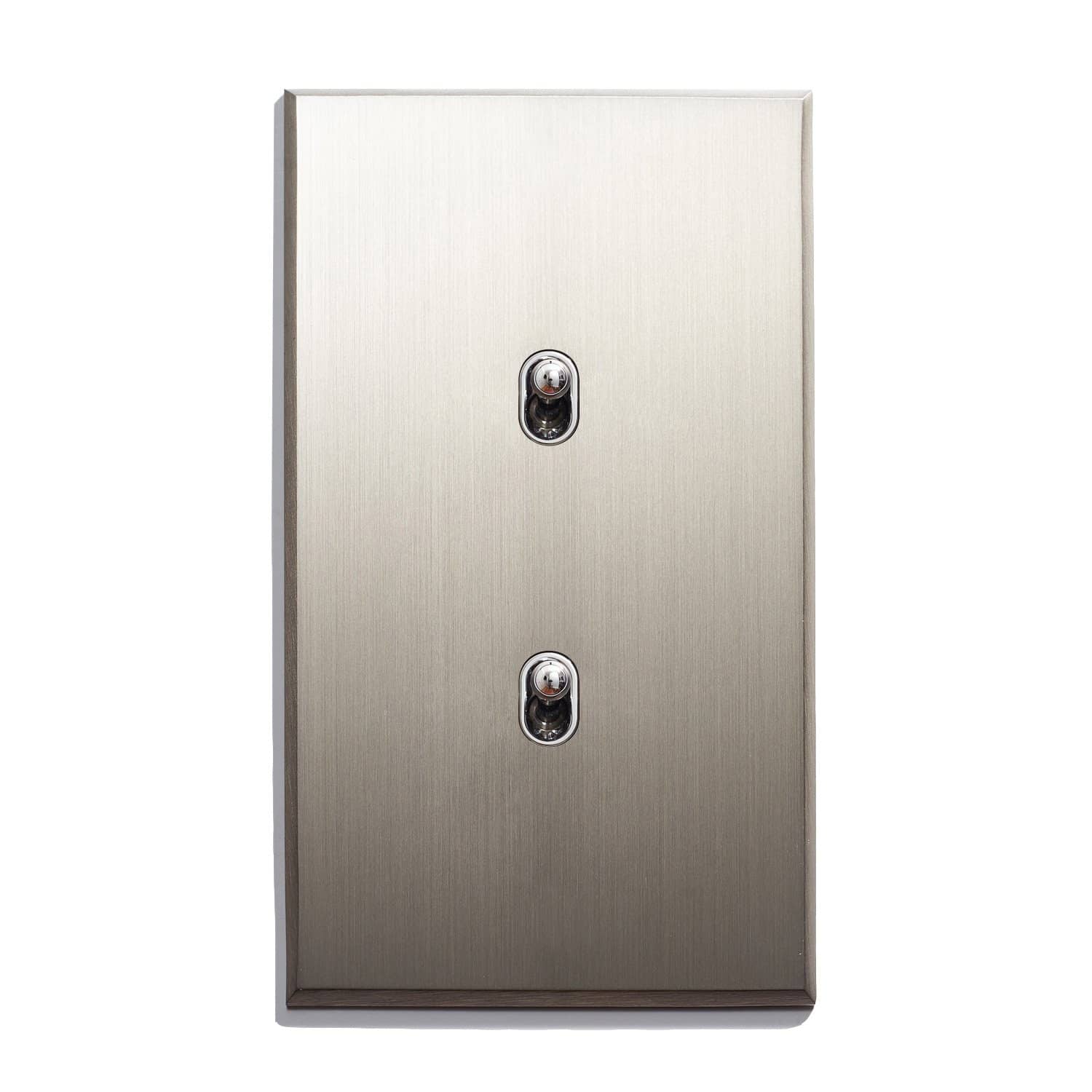

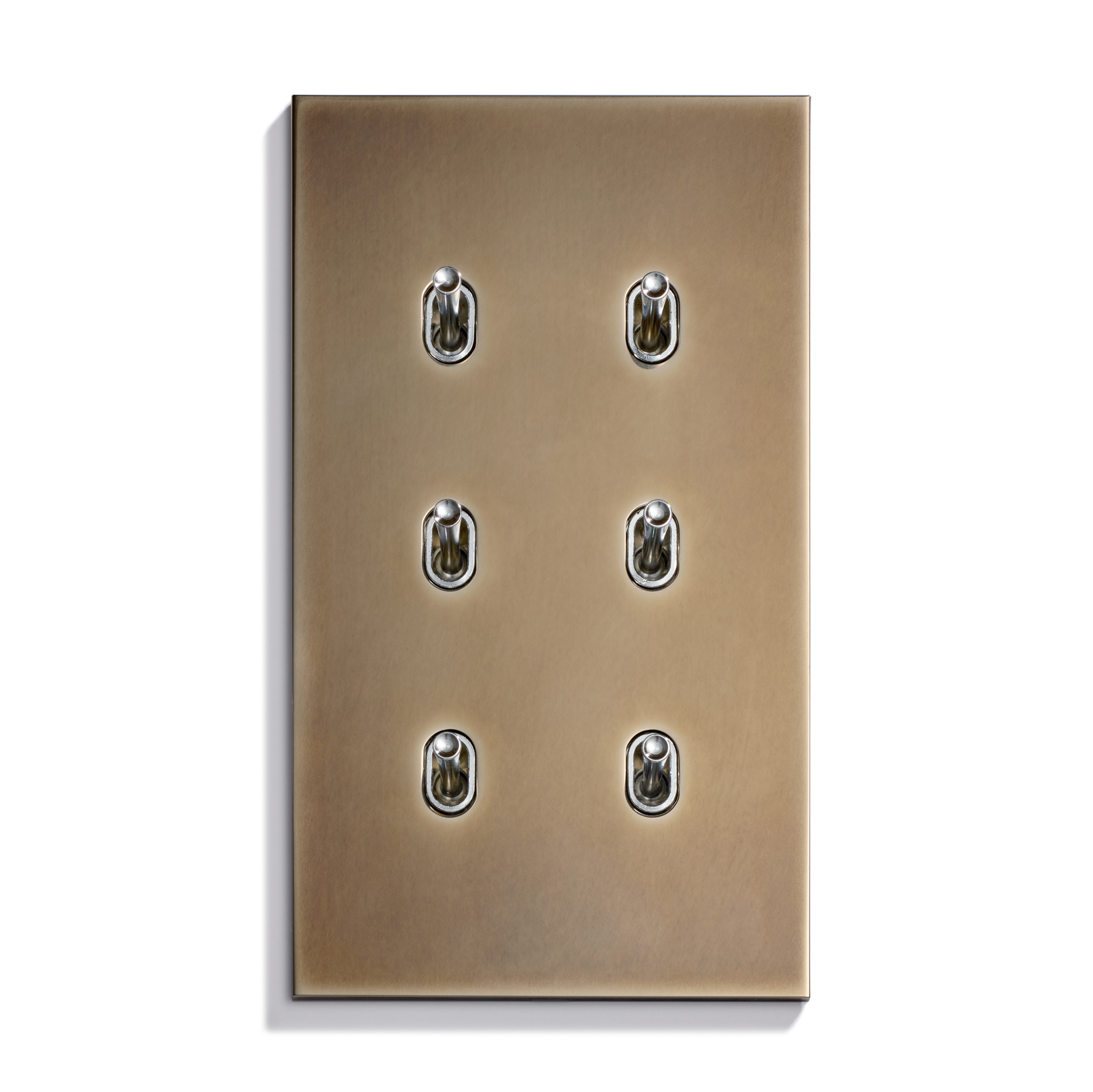

Ellipse Keypad | 82 x 144
Oval bases and linear curves define the sleek push buttons and toggles of Meljac’s Ellipse collection keypads.
Plate dimensions
3.2″ x 5.7″ x .11″ | 82 x 144 x 3 mm
Switch options
1-6 Toggles or Push Buttons
Push buttons and toggles can be configured and combined according to specification, with respect to spatial limitations.
Available switch-types:
-Momentary toggle (INV) |three-positions/returns-to-center |two contact closures
-Momentary push button (BP) |normally-open | one contact closure
-Latching toggle (VV) |open or closed | two contact closures
-Latching push button (BPE) |open or closed | one contact closure
Low-voltage dry contact toggles and push buttons for use in class-2 wiring circuits only and are not to be used with standard 120V electrical wiring.
Back box information
B00838 | plastic | new construction*
MELUS14482- NC16 | plastic | new construction*
MELUS14482 | metal | old construction
Metal boxes are stocked and available for immediate shipping.
*Printed-to-order in 10-15 business days.
Plate finish
Available to order in all metallic finishes and RAL powdercoats.
Switch finish
Toggle Switch Style Options
Ellipse – high-tapered lever with convex end
Ellipse Seattle – linear-taper lever with concave end
Ellipse JMA – square-tapered lever with rectangular end
Standard
Brass – warm plate finishes (e.g. bronze, brass)
Chrome – cool plate finishes (e.g. nickel, chrome, gunmetal)
Premium*
Toggle or push buttons matched to plate finish – Select Finishes
Polished brass
Polished chrome
*Additional lead-time and cost
Screw type
Hidden (default) or visible
Edge type
Straight (default) or beveled
Engravings
Numerous engraving fonts, sizes and styles available. See Engraving Options page for more details.
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful project outcome keypads must be purchased through the entity responsible for system integration.
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
