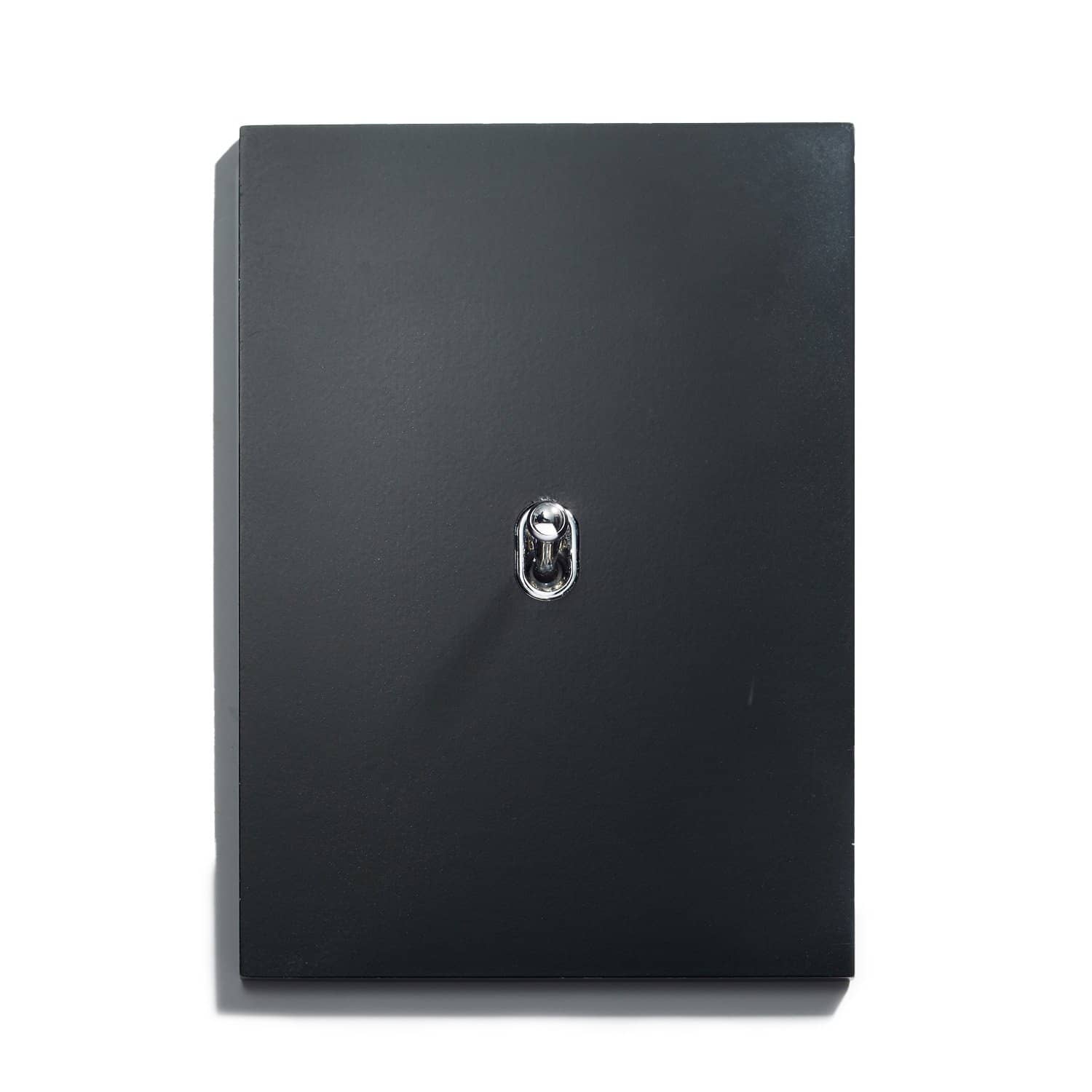

Ellipse Keypad | 82 x 117
Oval bases and linear curves define the sleek push buttons and toggles of Meljac’s Ellipse collection keypads.
Ellipse Keypad | 82 x 117
Oval bases and linear curves define the sleek push buttons and toggles of Meljac’s Ellipse collection keypads.
Plate dimensions
3.2″ x 4.6″ x .11″ | 82 x 117 x 3 mm
Switch options

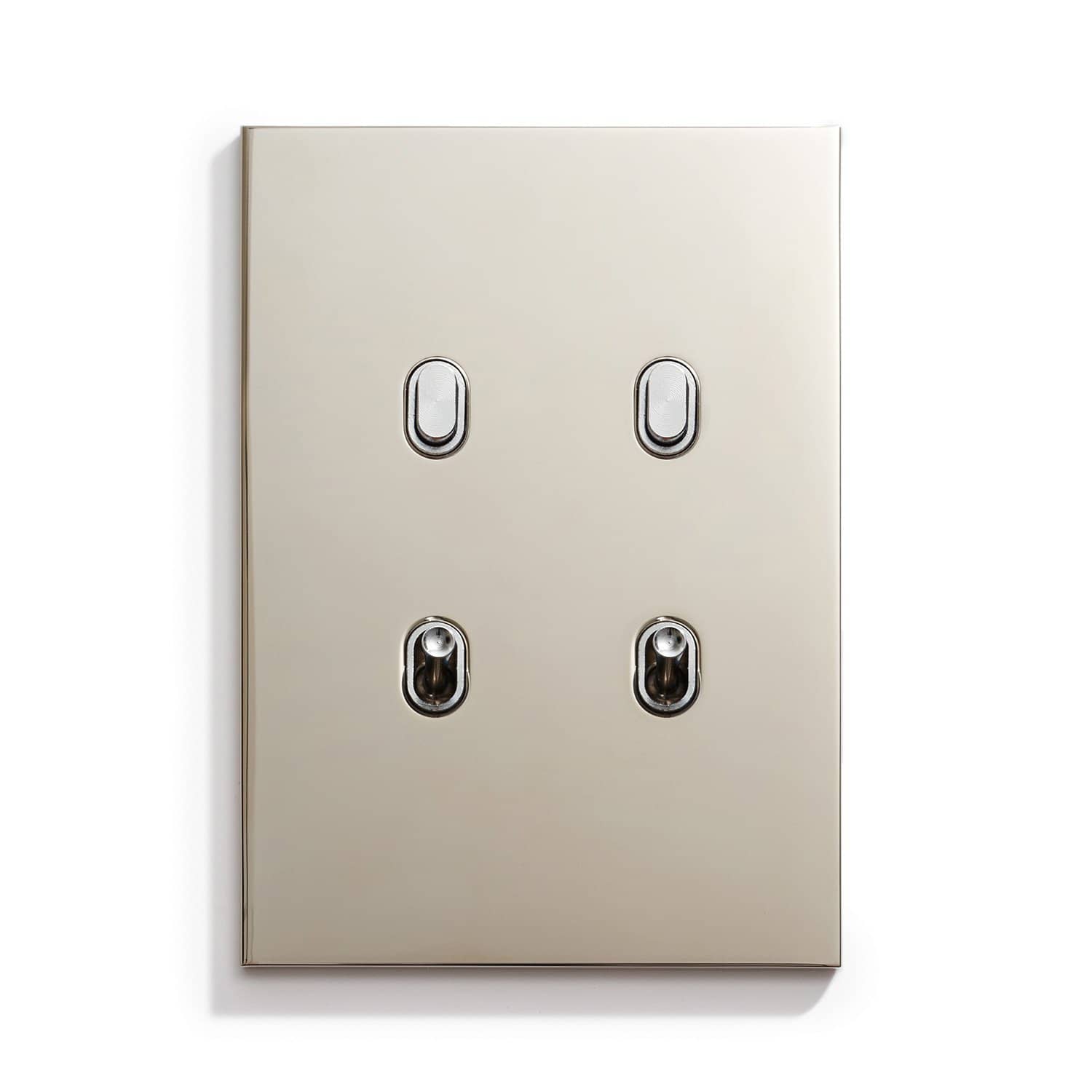

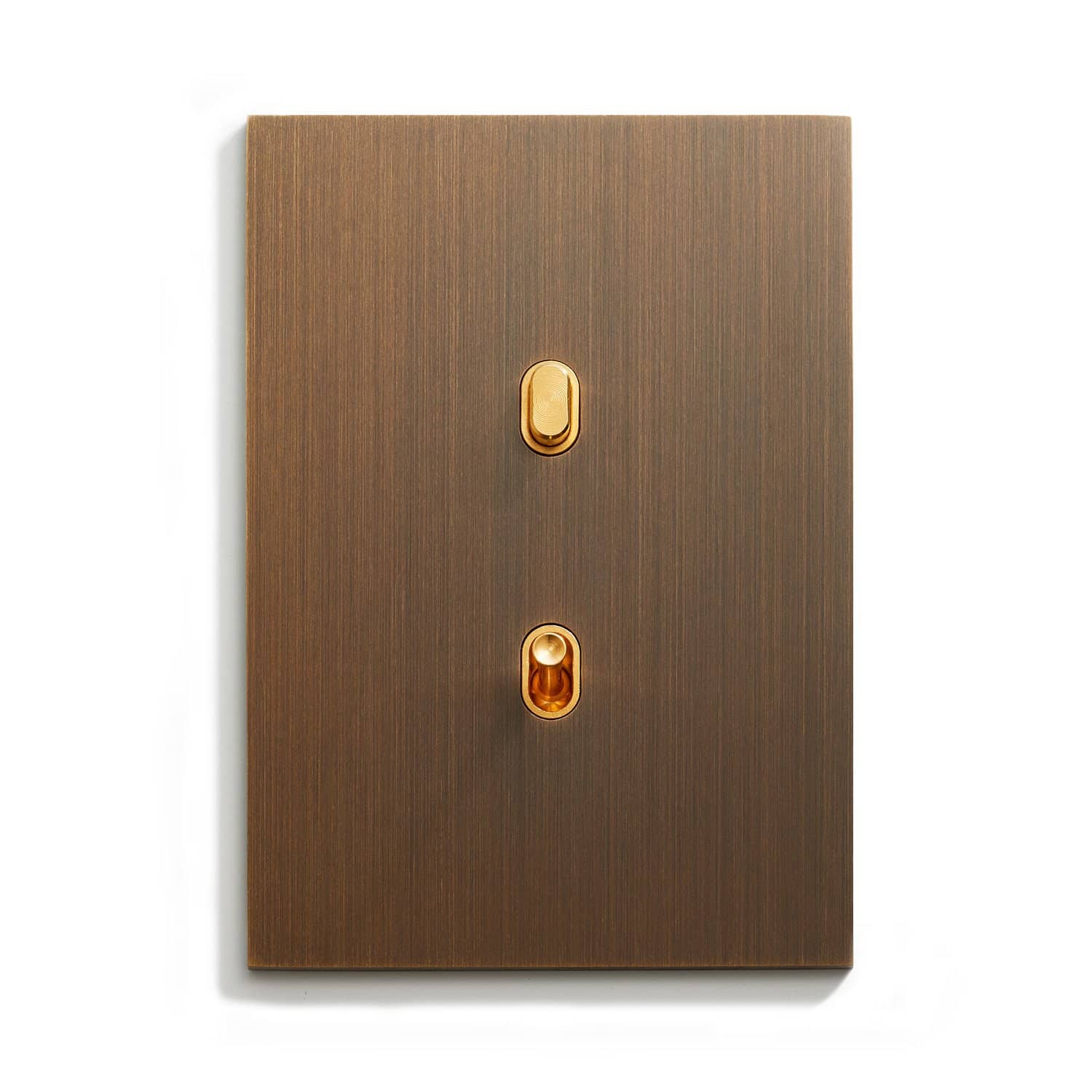

1-4 Toggles or Push Buttons
Push buttons and toggles can be configured and combined according to specification, with respect to spatial limitations.
Available switch-types:
-Momentary toggle (INV) |three-positions/returns-to-center |two contact closures
-Momentary push button (BP) |normally-open | one contact closure
-Latching toggle (VV) |open or closed | two contact closures
-Latching push button (BPE) |open or closed | one contact closure
Low-voltage dry contact toggles and push buttons for use in class-2 wiring circuits only and are not to be used with standard 120V electrical wiring.
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
Plate finish
Available to order in all metallic finishes and RAL powdercoats.
Switch finish
Toggle Switch Style Options

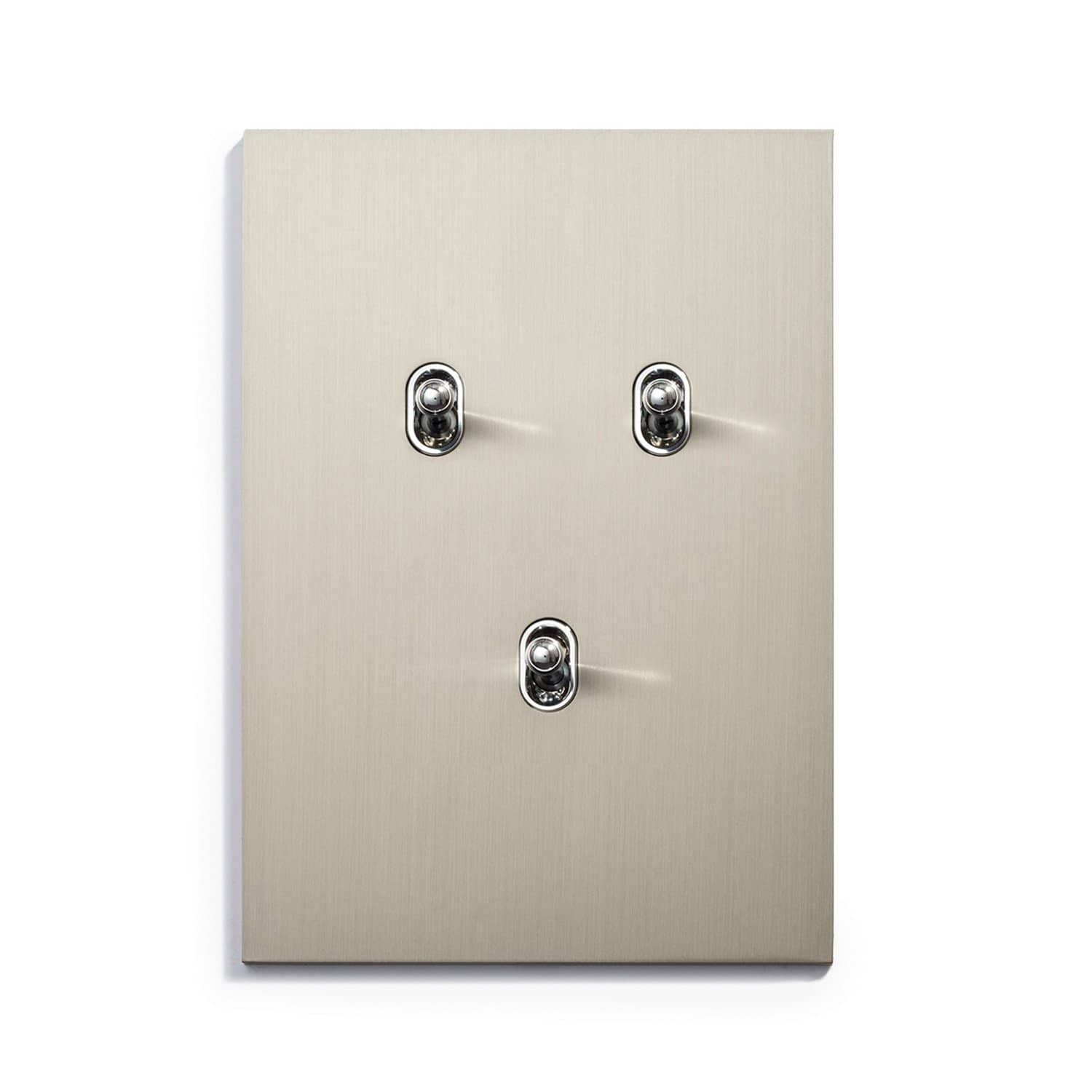

Ellipse – high-tapered lever with convex end
Ellipse Seattle – linear-taper lever with concave end

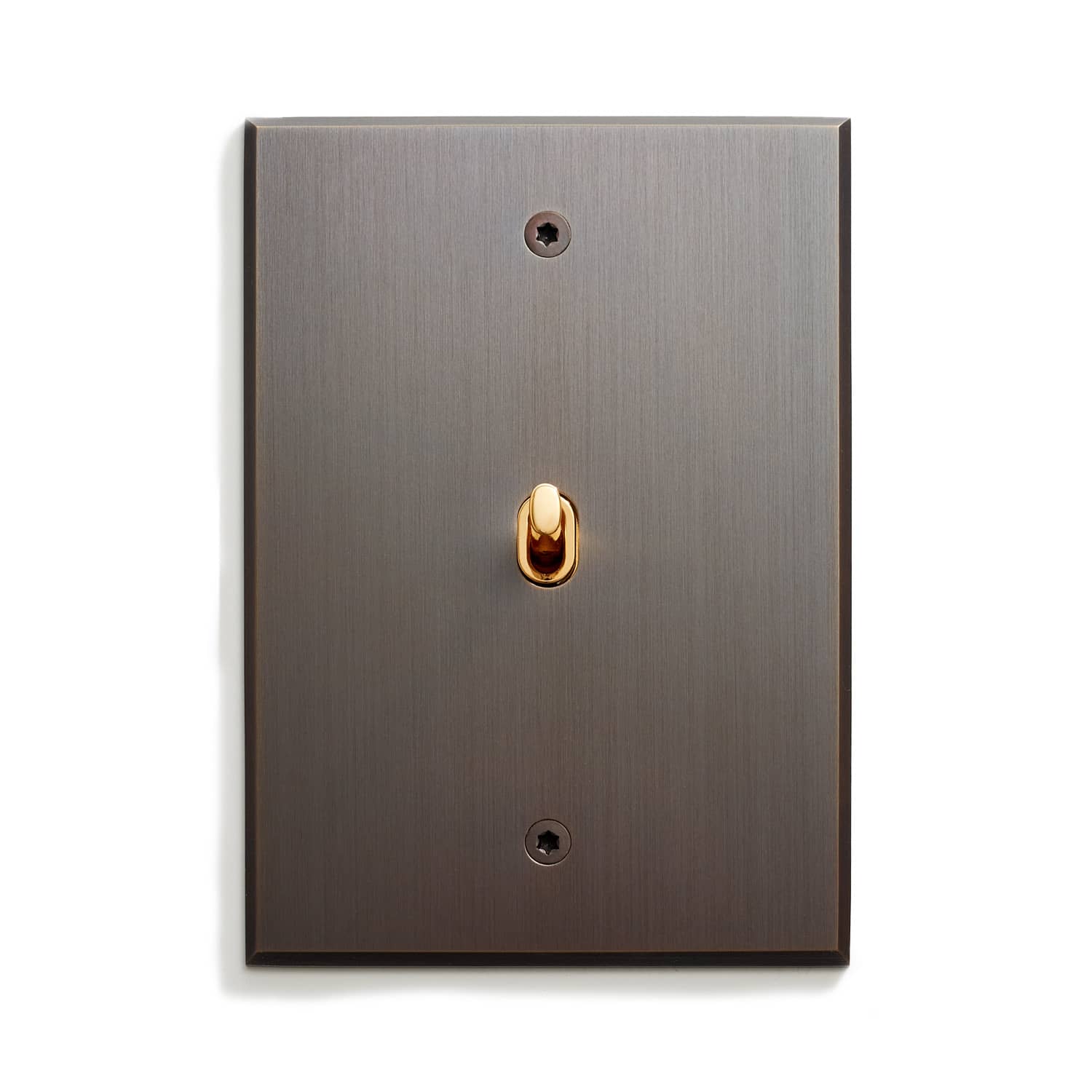

Ellipse JMA – square-tapered lever with rectangular end
Standard
Brass – warm plate finishes (e.g. bronze, brass)
Chrome – cool plate finishes (e.g. nickel, chrome, gunmetal)
Premium*
Toggle or push buttons matched to plate finish – Select Finishes
Polished brass
Polished chrome
*Additional lead-time and cost
Screw type
Hidden (default) or visible
Edge type
Straight (default) or beveled
Engravings
Numerous engraving fonts, sizes and styles available. See Engraving Options page for more details.
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful project outcome keypads must be purchased through the entity responsible for system integration.
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
