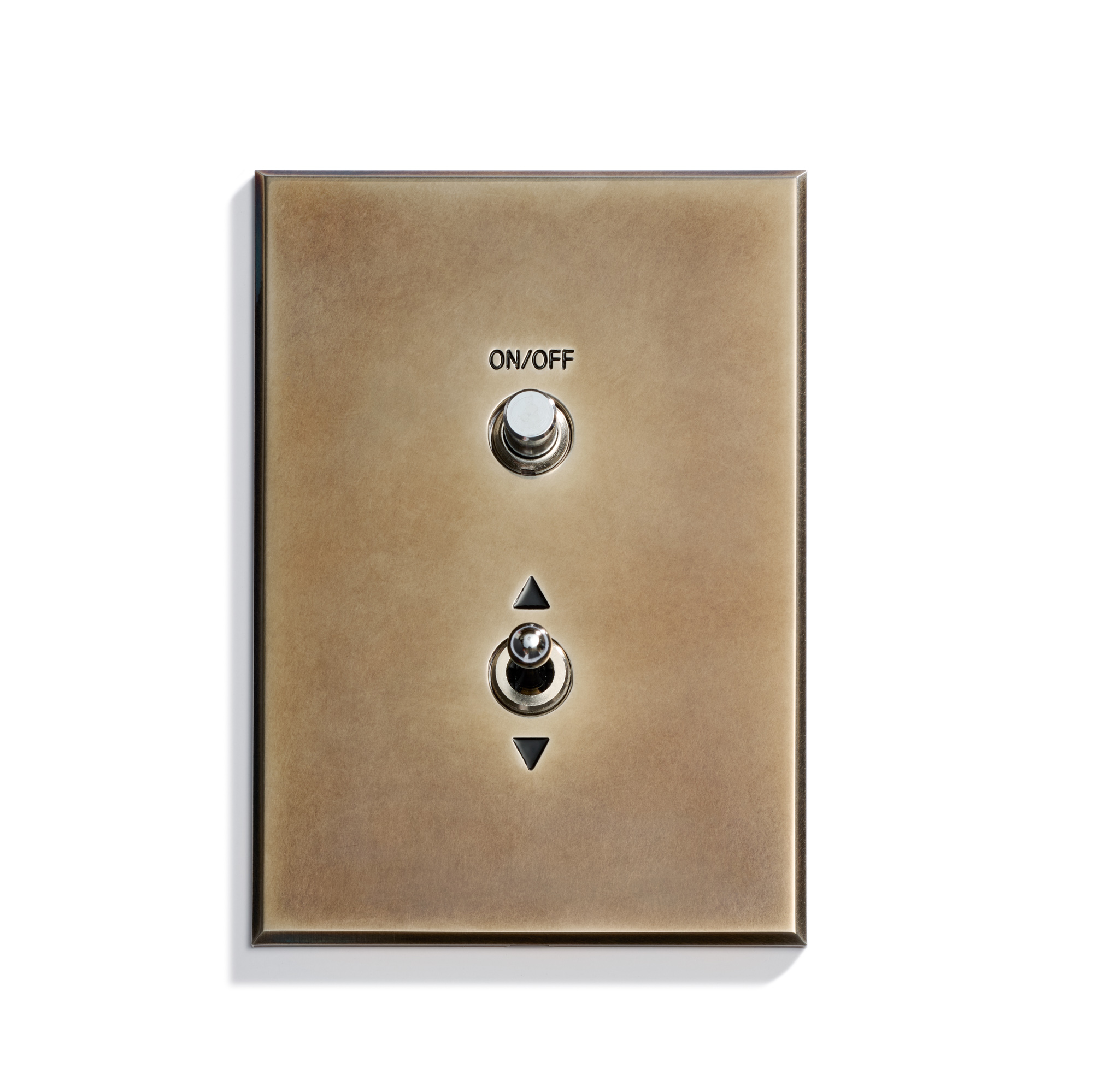

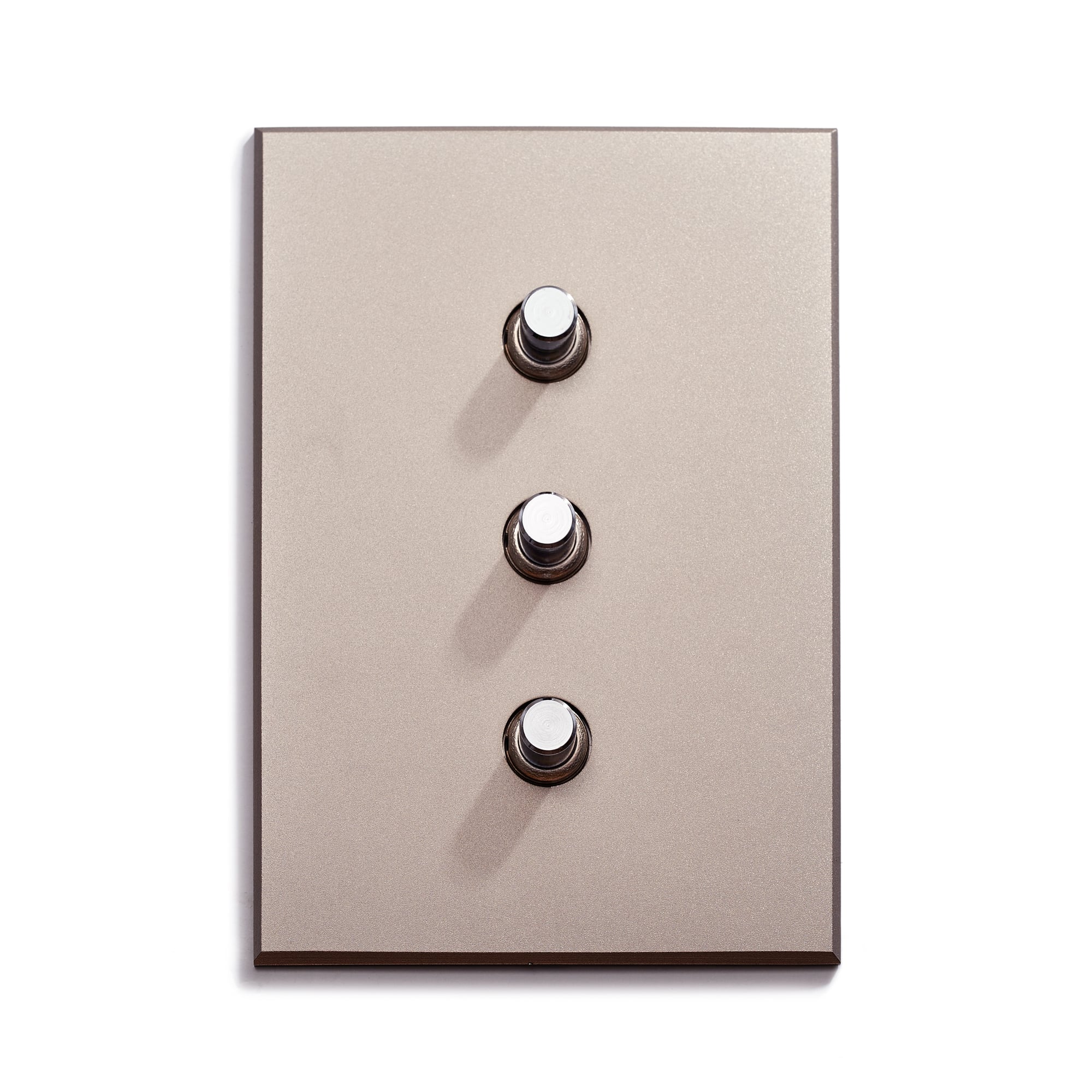

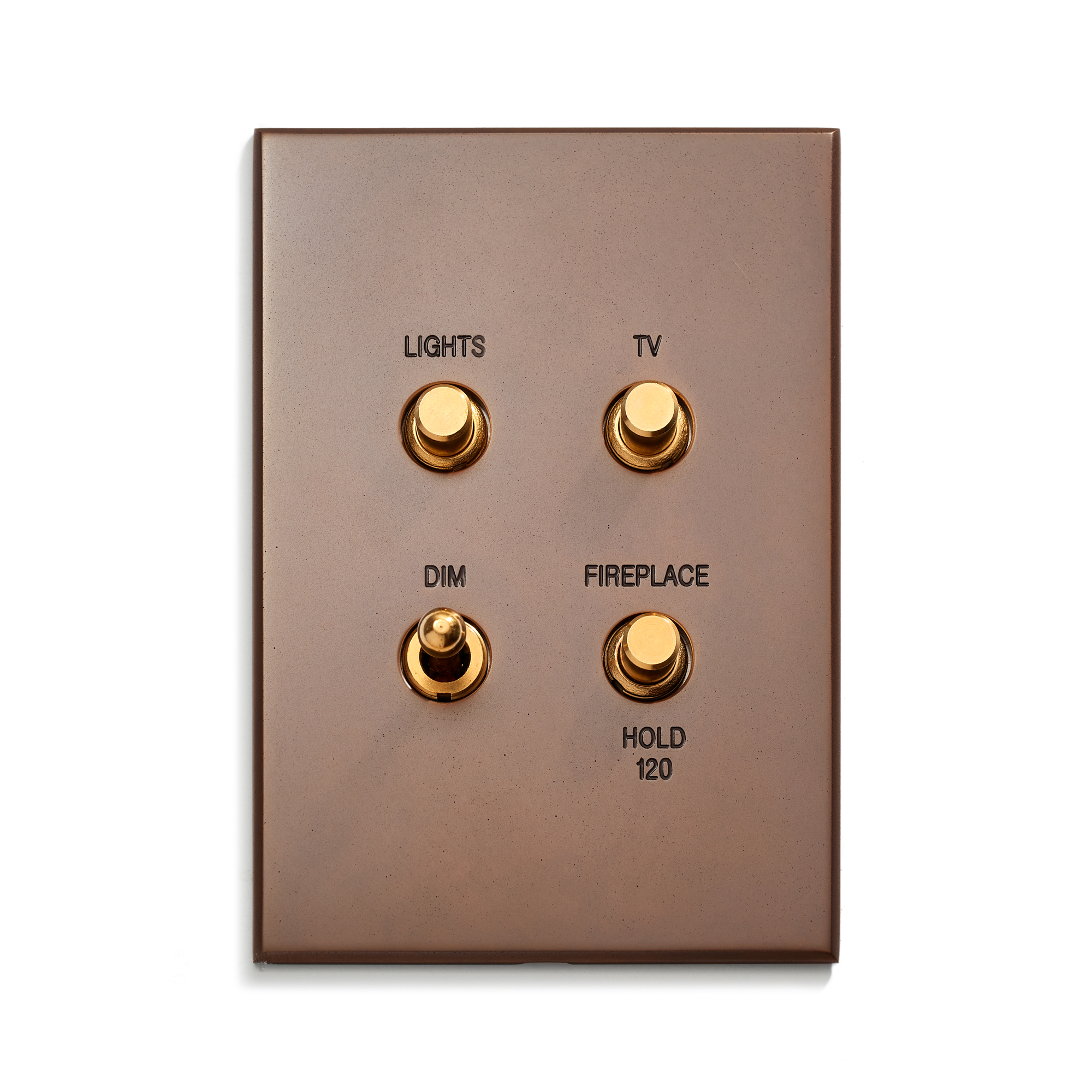

Classique Keypad | 82 x 117
The iconic teardrop toggle and round push button: timeless design, unmatched feel.
Classique Keypad | 82 x 117
The iconic teardrop toggle and round push button: timeless design, unmatched feel.
Plate dimensions
3.2″ x 4.6″ x .11″ | 82 x 117 x 3 mm
Switch options

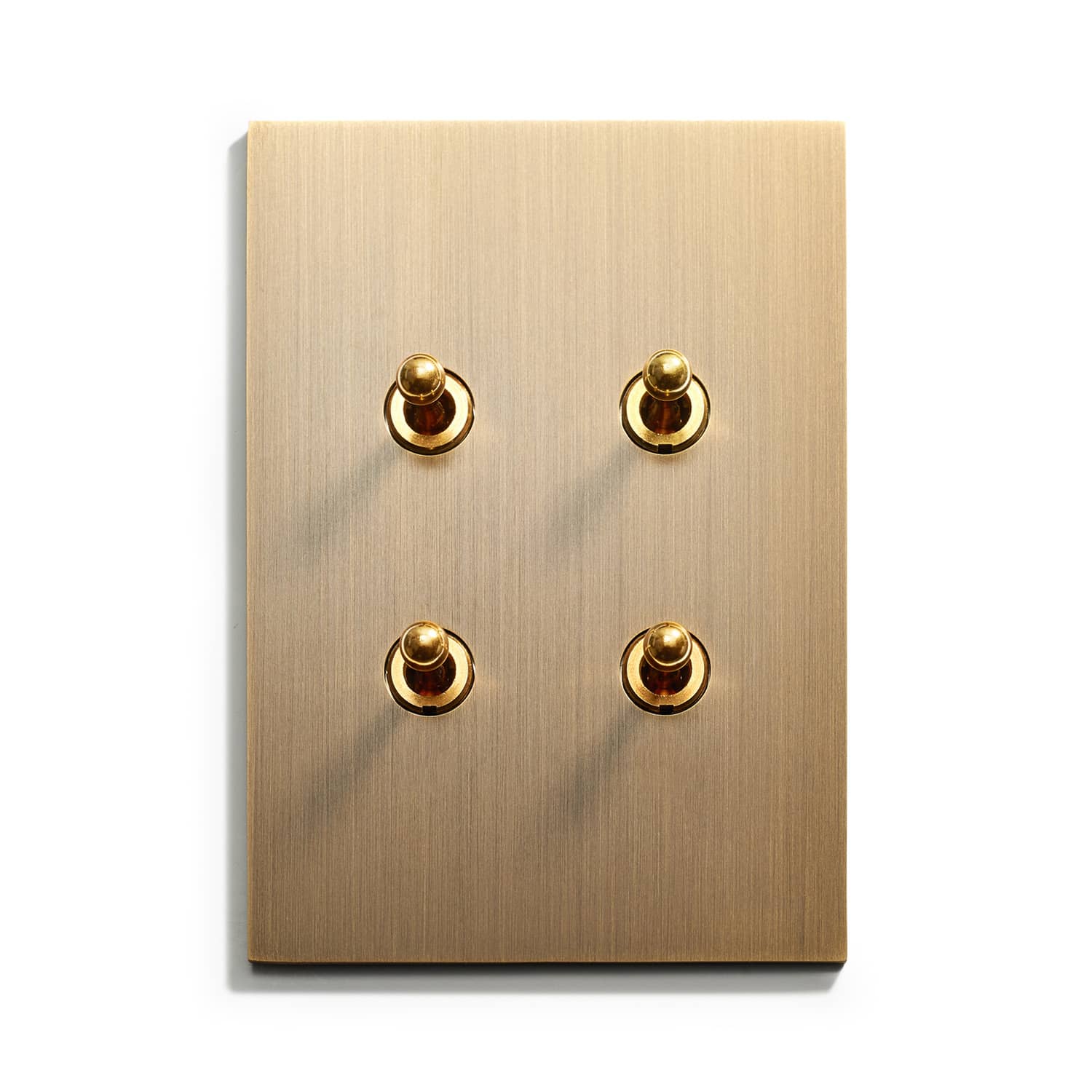

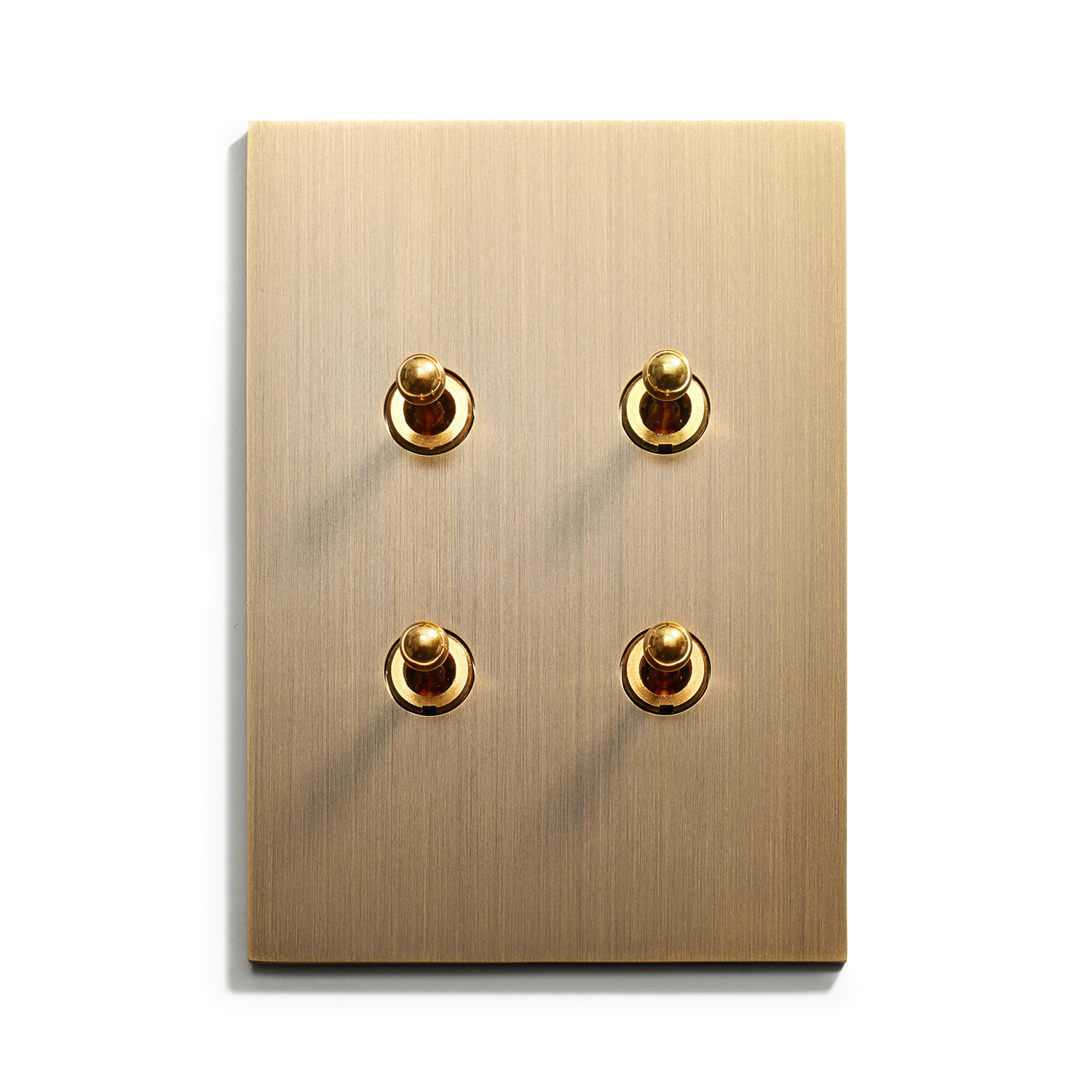

1-4 Toggles

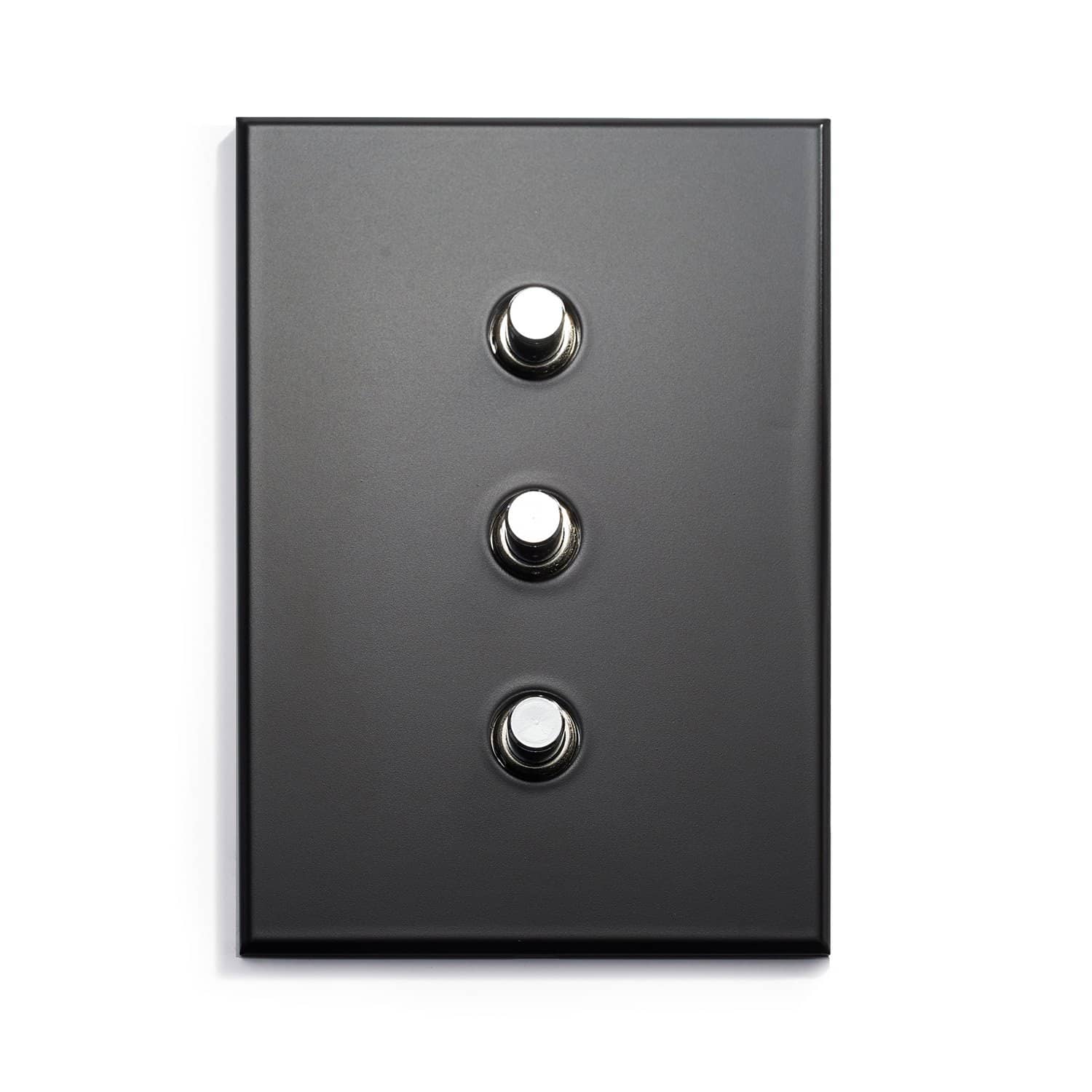

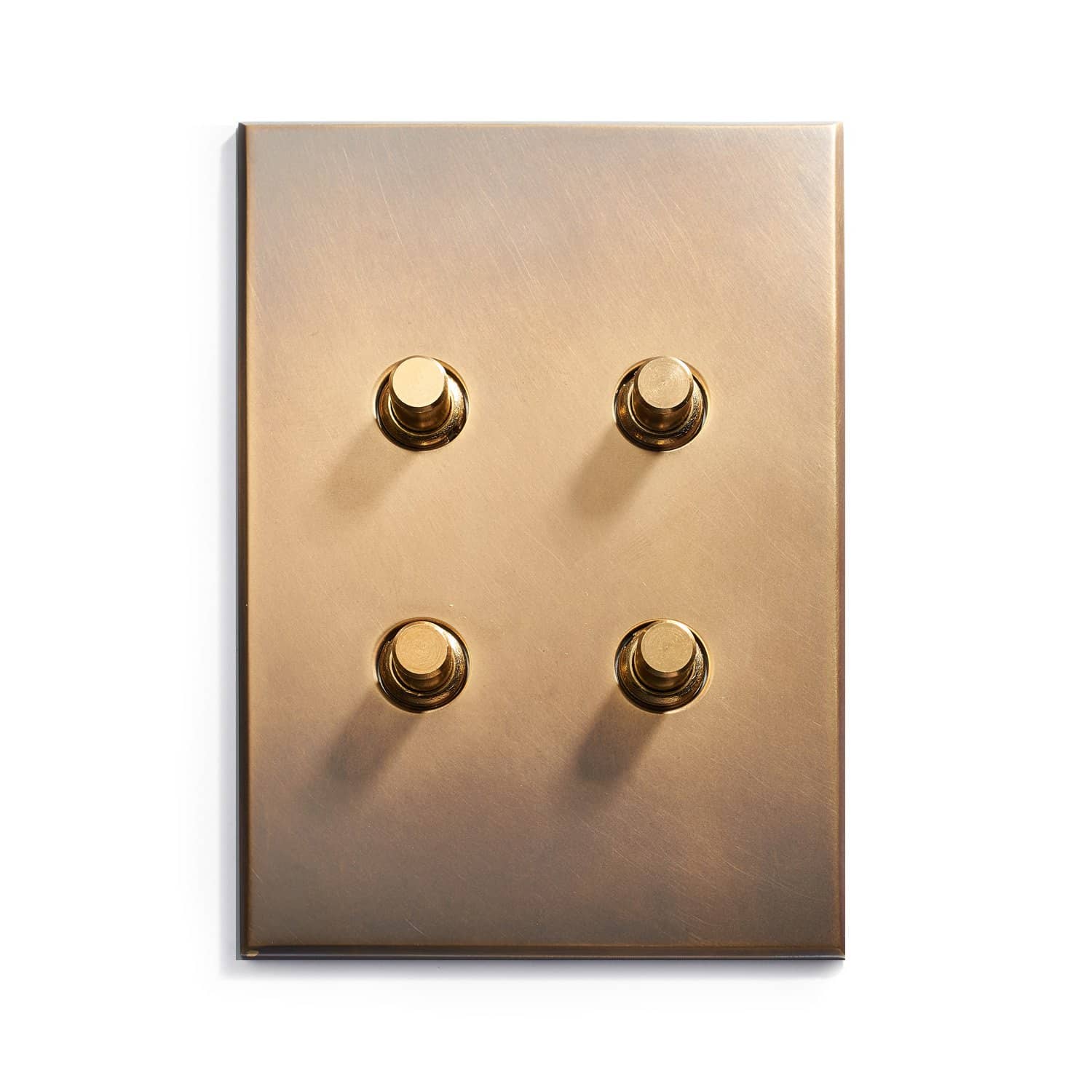

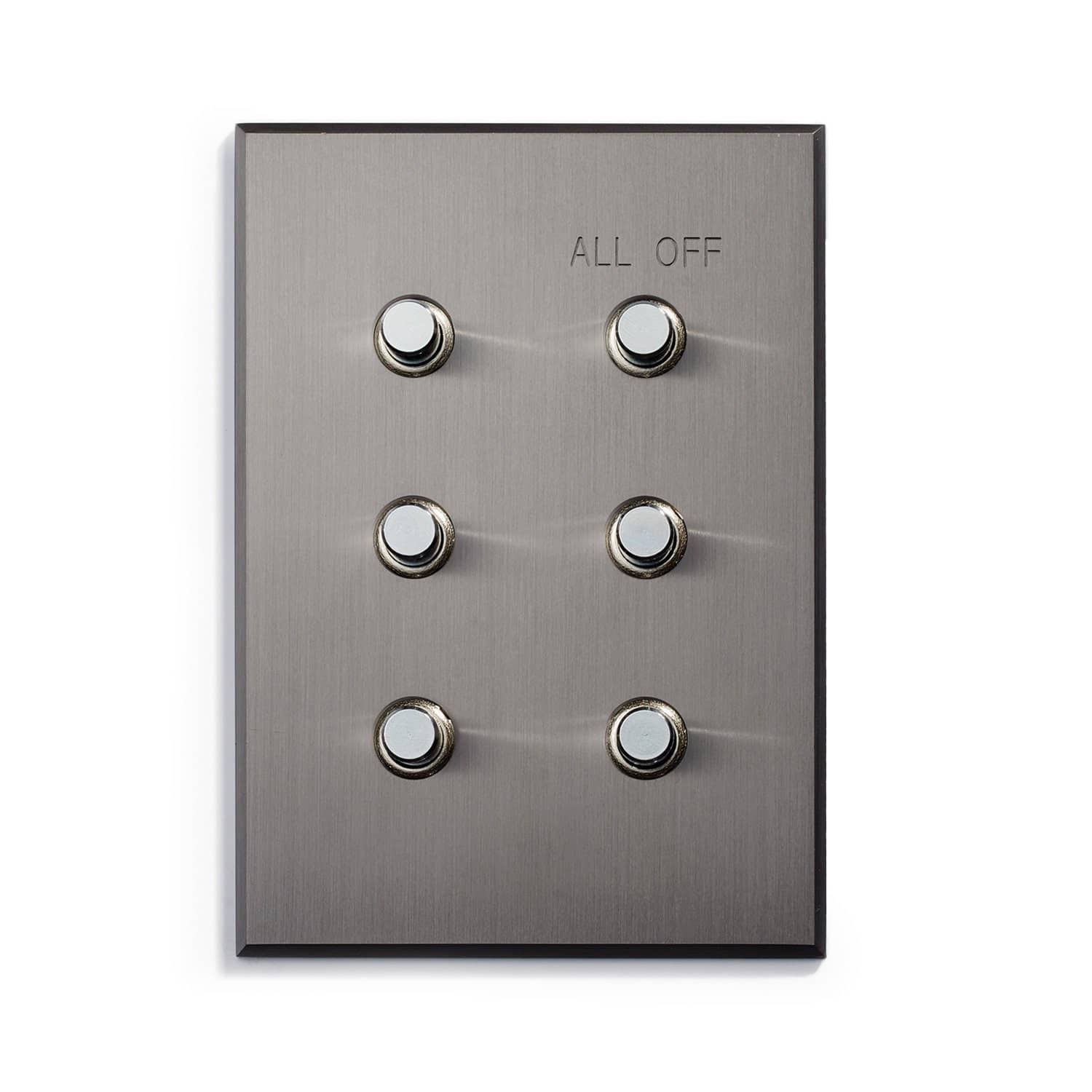

1-6 Push Buttons

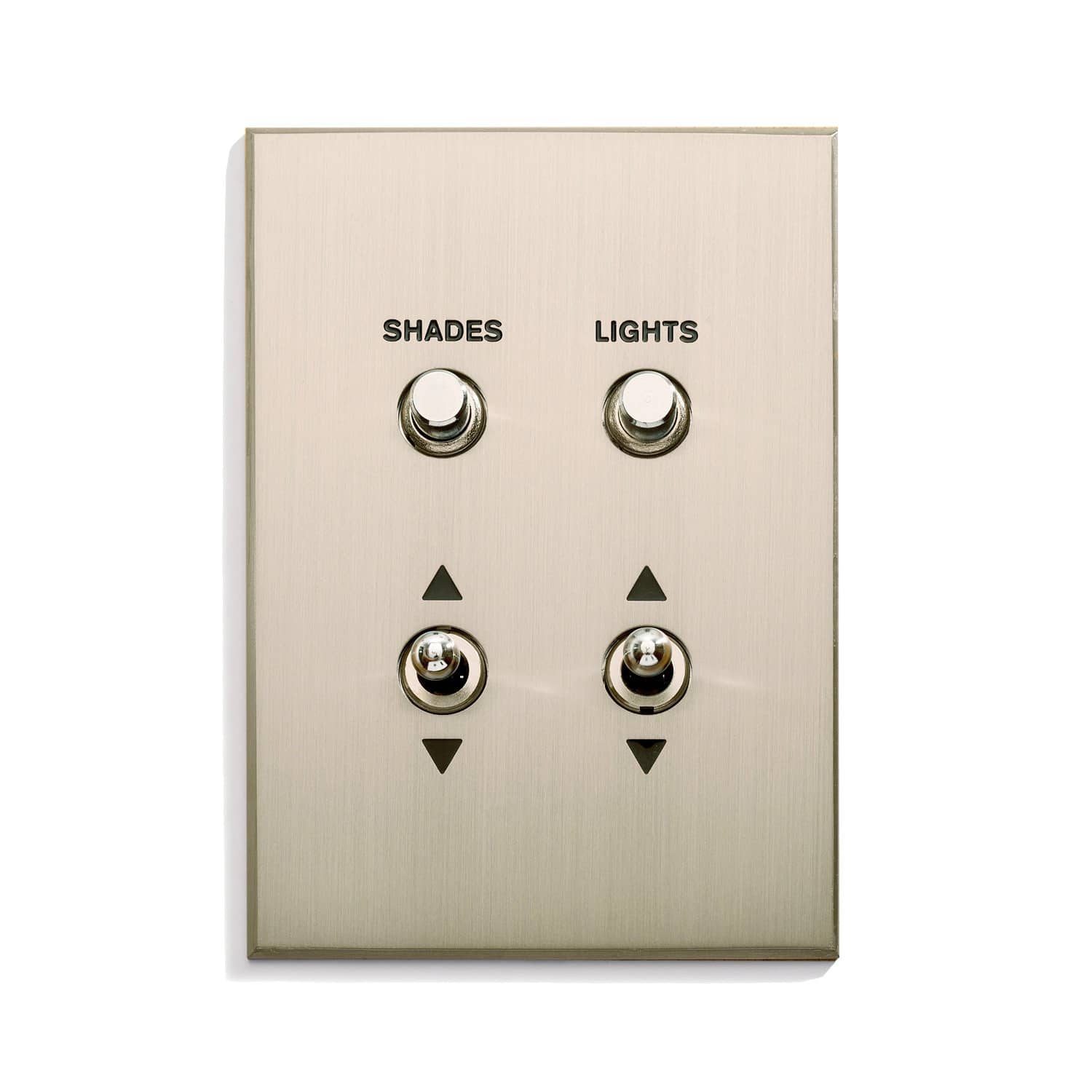

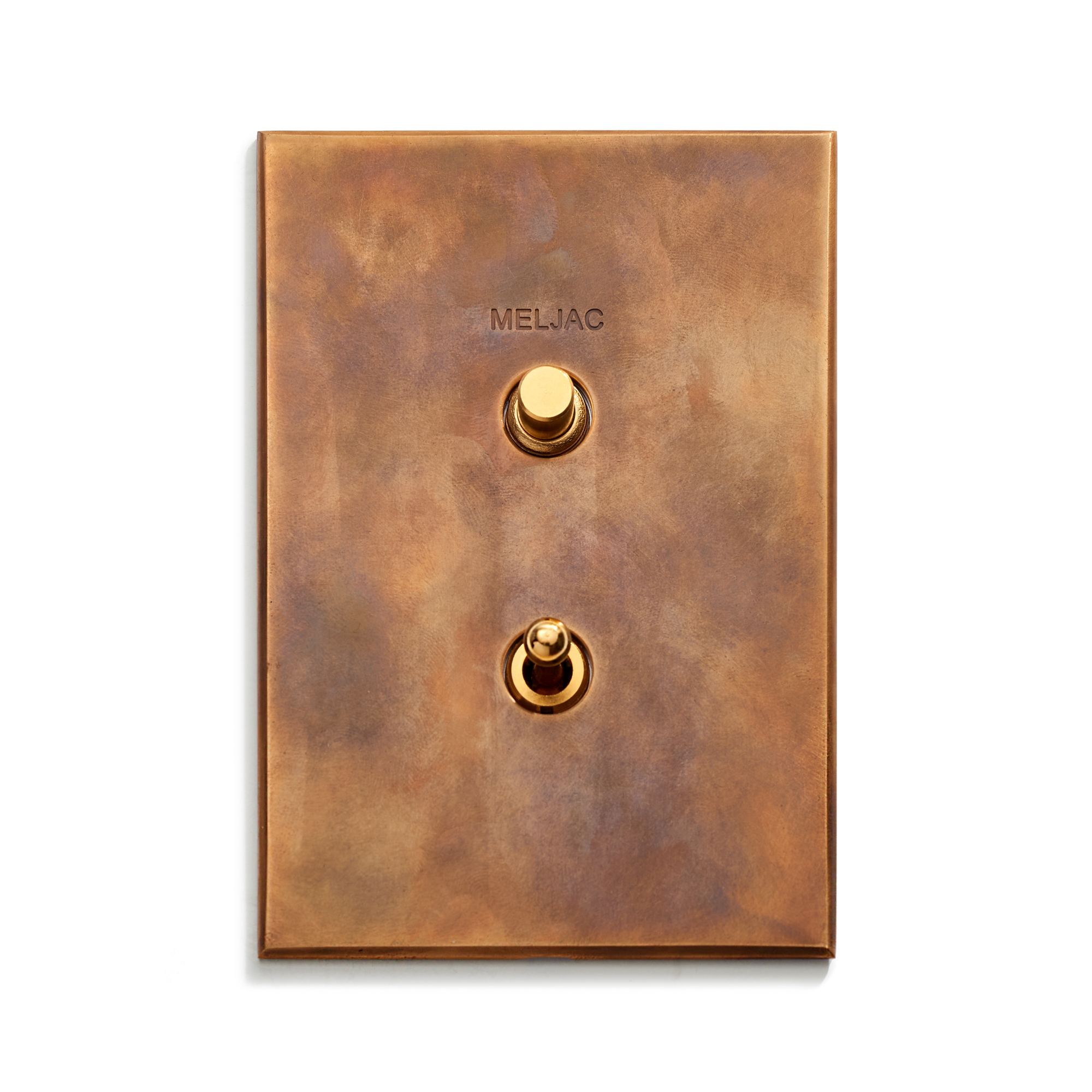

Push buttons and toggles can be configured and combined according to specification, with respect to spatial limitations.
Available switch-types:
-Momentary toggle (INV) |three-positions/returns-to-center |two contact closures
-Momentary push button (BP) | normally-open | one contact closure
-Latching toggle (VV) | open or closed | two contact closures
-Latching push button (BPE) | open or closed | one contact closure
Low-voltage dry contact toggles and push buttons for use in class-2 wiring circuits only and are not to be used with standard 120V electrical wiring.
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
View additional back box information
Certifications
UL/CSA Listed.
Plate finish
Available to order in all metallic finishes and RAL powdercoats.
Switch finish
Default
Brass push buttons or toggles with warm plate finishes (bronze, brass)
Chrome push buttons or toggles with cool plate finishes (nickel, chrome, gunmetal, copper)
Premium*
Black Chrome
Push buttons or toggles can be finished to match the plate. Only available with select finishes.
*Additional lead-time and cost. Please contact Meljac North America for more details.
Screw type
Hidden or visible
Edge type
Beveled or straight

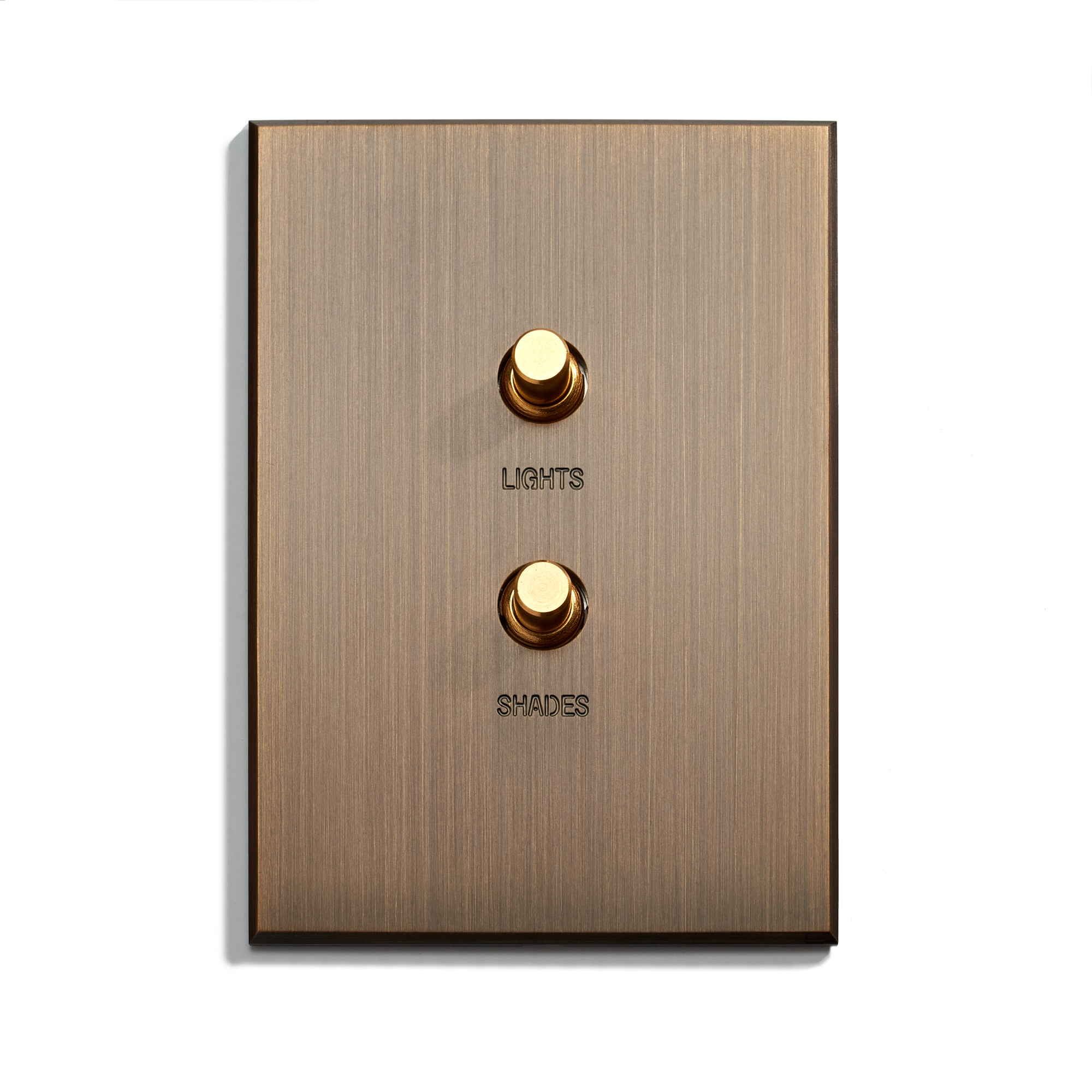

Engravings
Numerous engraving fonts, sizes and styles available. See Engraving Options page for more details.
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful project outcome keypads must be purchased through the entity responsible for system integration.
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
