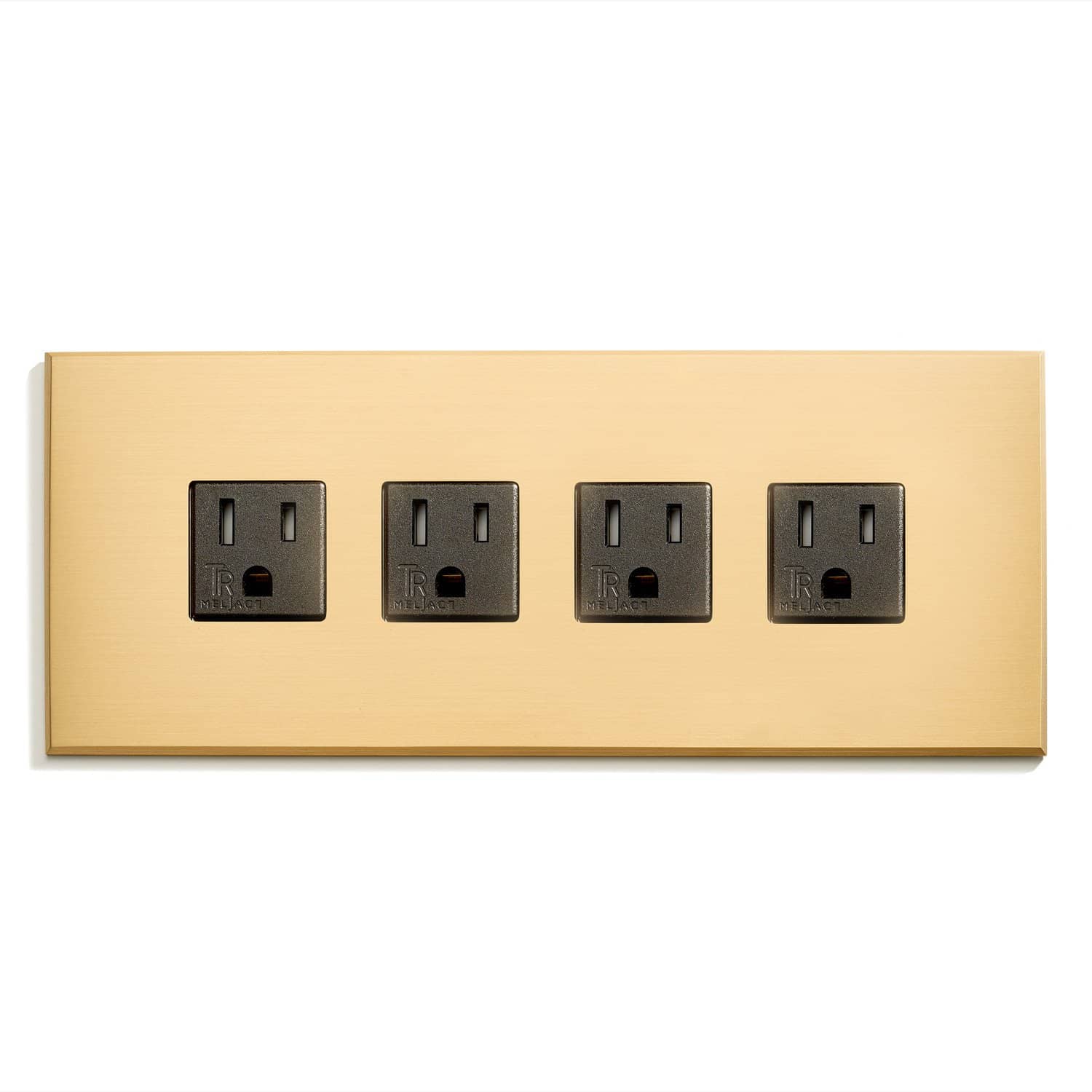

QUAD WALL | 207 x 82

Meljac’s signature wall outlet solutions: crafted for you.

Brushed Brass (Champagne)

Hidden Screws | Beveled Edge
MNA Catalog # WO-H-822073-4P(15B)-B

QUAD WALL | 207 x 82

Meljac’s signature wall outlet solutions: crafted for you.

Product details

Plate dimensions

width = 8.1″ (207 mm)
height = 3.2″ (82 mm)
depth/thickness = .11″ (3 mm)

Port options

4 receptacles

Ports can be configured and combined according to specification, with respect to spatial limitations.

Options include:

15A 125VAC tamper-resistant (TR) receptacle (black or white)
15A 125VAC tamper-resistant (TR) receptacle  (black)
USB-A charging (2.1A 5VDC)
USB-C charging (10W 2A 5VDC)
RJ45 data
RJ11 phone
Keystone cutouts
HDMI

For additional low-voltage port options and configuration possibilities, please contact Meljac North America.

Back box information

MELUS20782 | metal | new construction

Metal boxes are stocked and available for immediate shipping.

View additional back box information

Certifications

UL/CSA Certified.

Finish + custom options

Plate Finish

Available to order in all metallic finishes and RAL powdercoats.

View finishes

Screw Type

Hidden or visible

View screw options

Edge Type

Beveled or straight

View edge details

Availability + purchasing

PURCHASING

Available to order directly from Meljac North America.

To help ensure a successful installation we recommend that wall outlet plates be purchased by the party responsible for installation.

For quote requests, please fill out the appropriate specification sheet and submit through the following link:

Quote Requests

AVAILABILITY / LEAD-TIMES

All Meljac products are made-to-order at our workshops in France.

Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.

Please see the Current Lead Times for the most up-to-date information.
