DOUBLE WALL | 117 x 82
Meljac’s signature wall outlet solutions: crafted for you.
DOUBLE WALL | 117 x 82
Meljac’s signature wall outlet solutions: crafted for you.
Plate dimensions
width = 4.6″ (117 mm)
height = 3.2″ (82 mm)
depth/thickness = .11″ (3 mm)
Port options

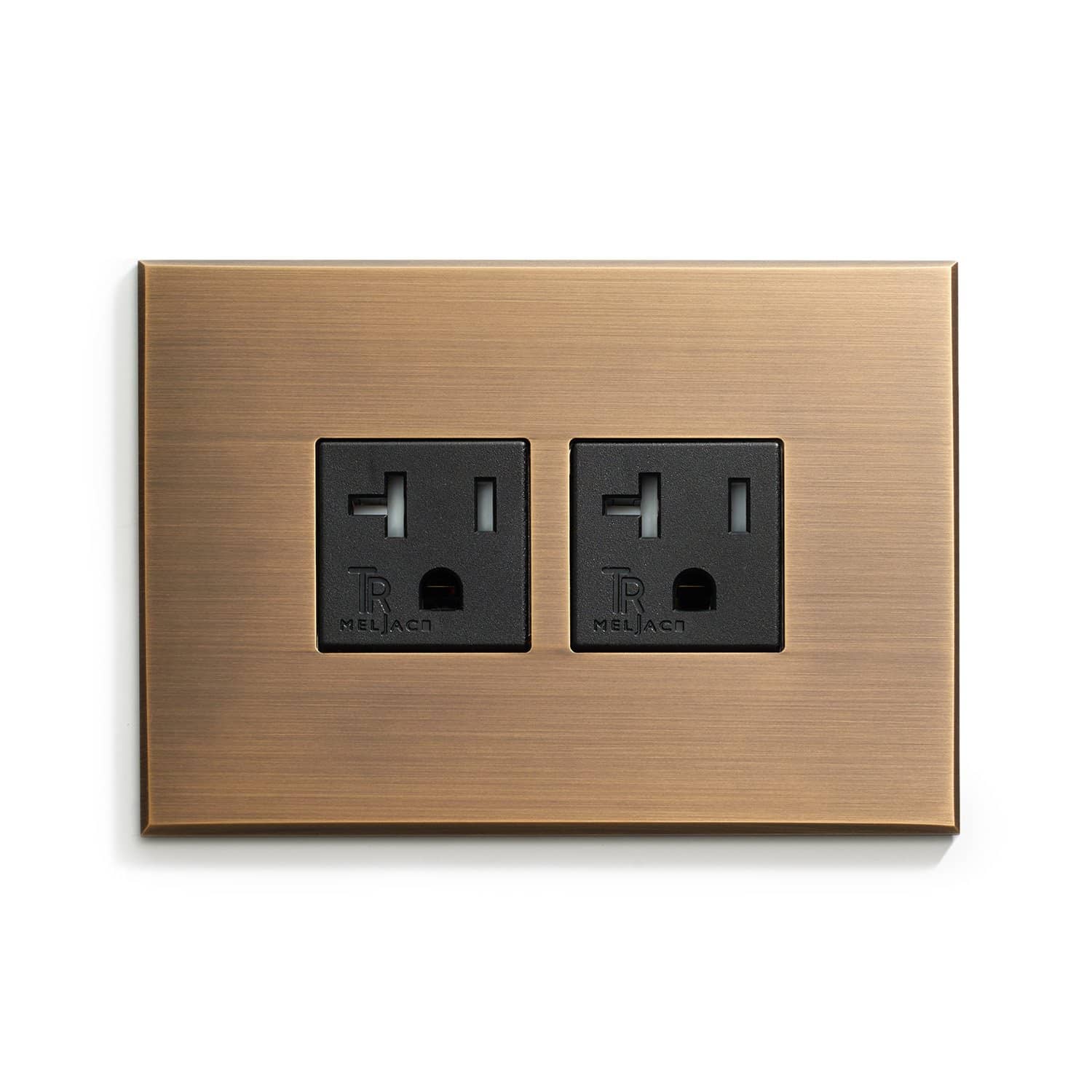

1-2 receptacles or ports
Ports can be configured and combined according to specification, with respect to spatial limitations.
Options include:

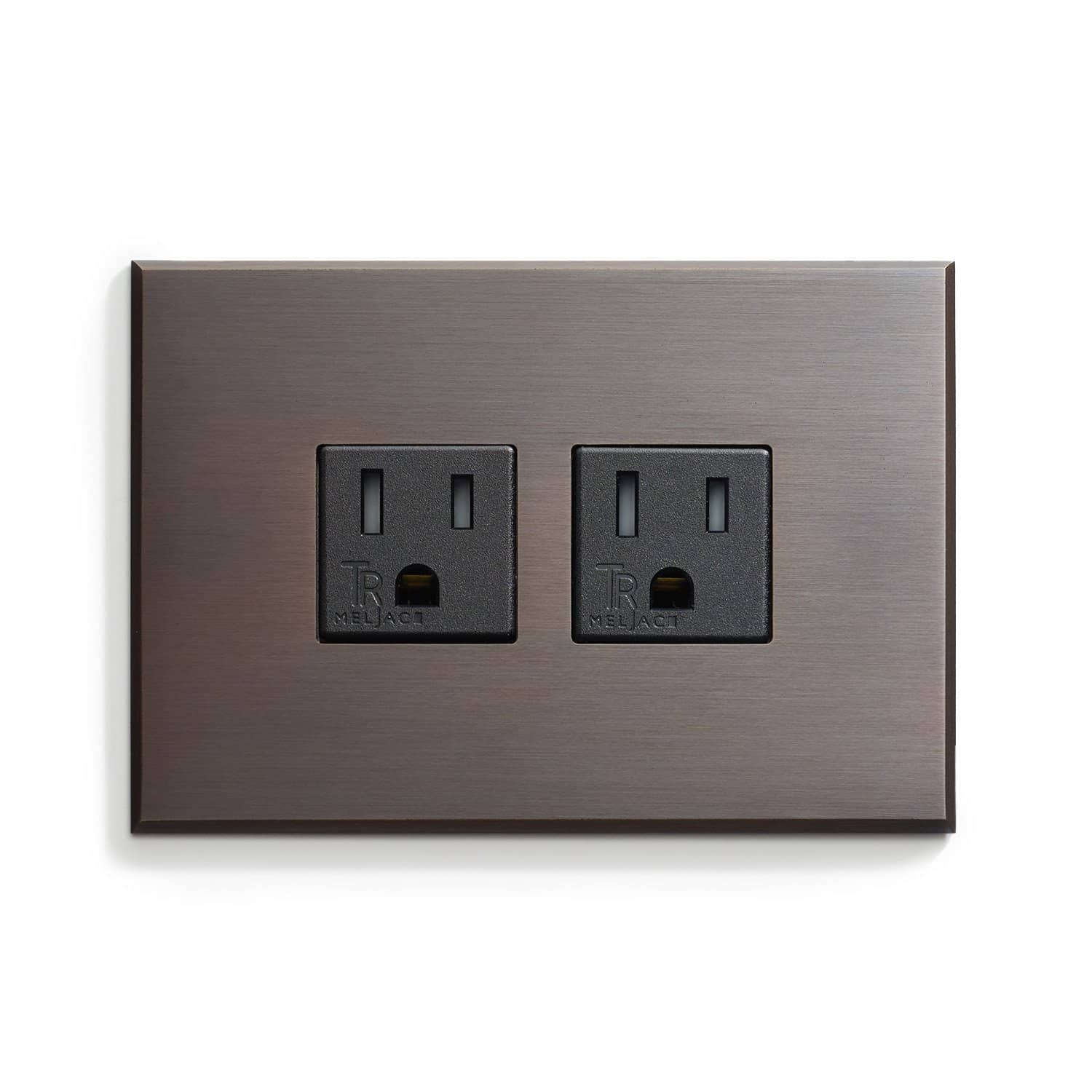

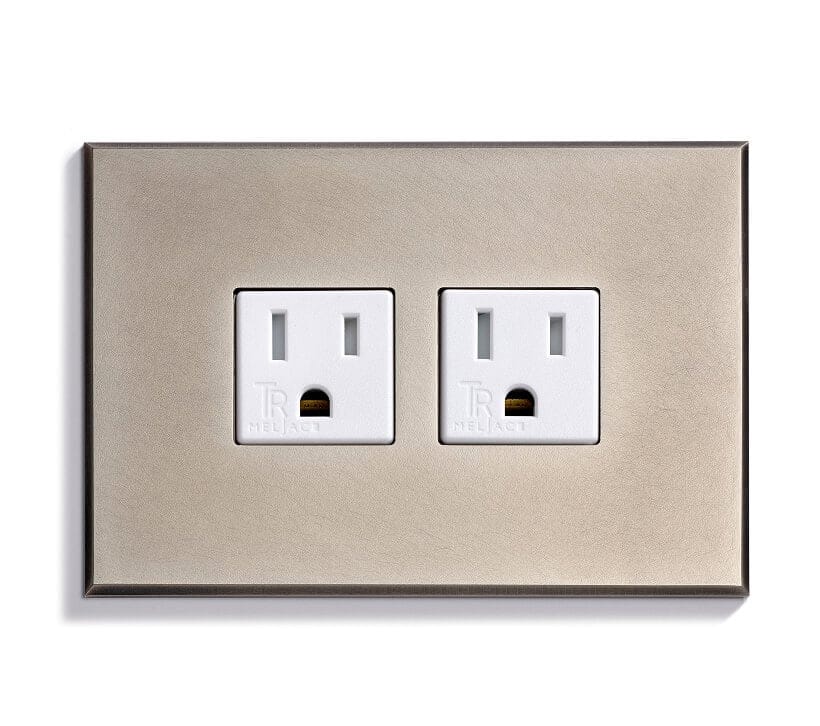

15A 125VAC tamper-resistant (TR) receptacle (black or white)
15A 125VAC tamper-resistant (TR) receptacle (black)

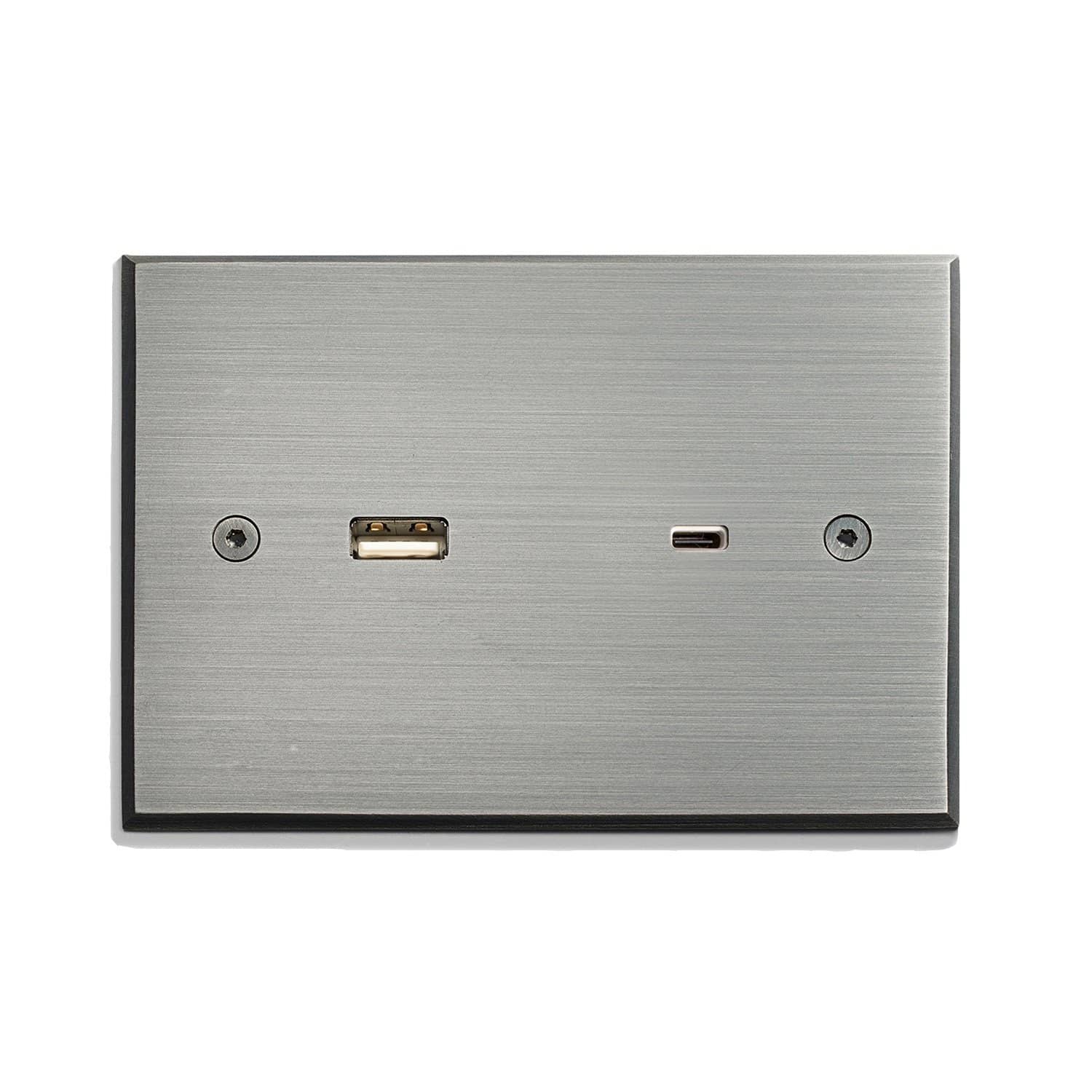

USB-A charging (2.1A 5VDC)

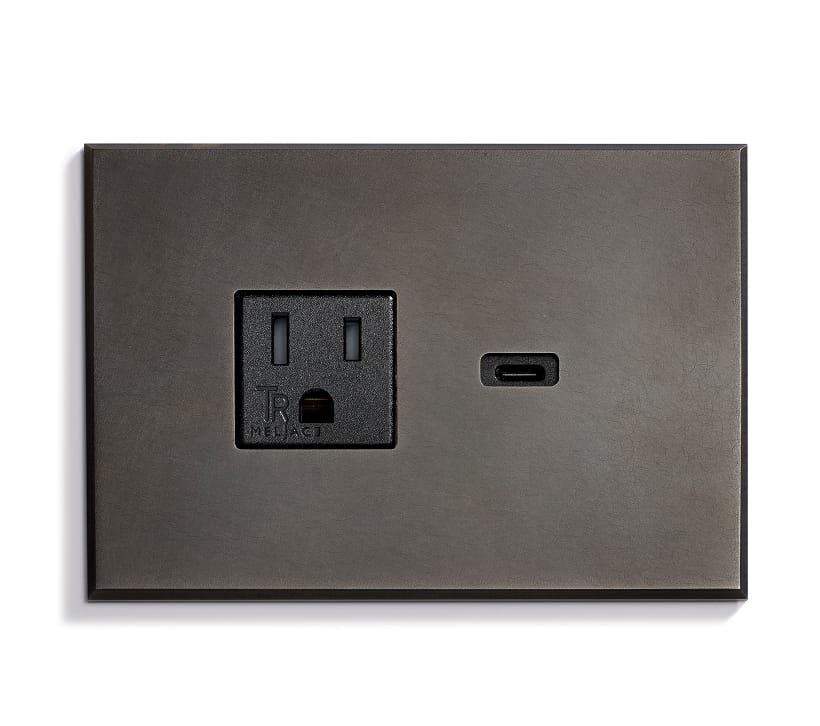

USB-C charging (10W 2A 5VDC)

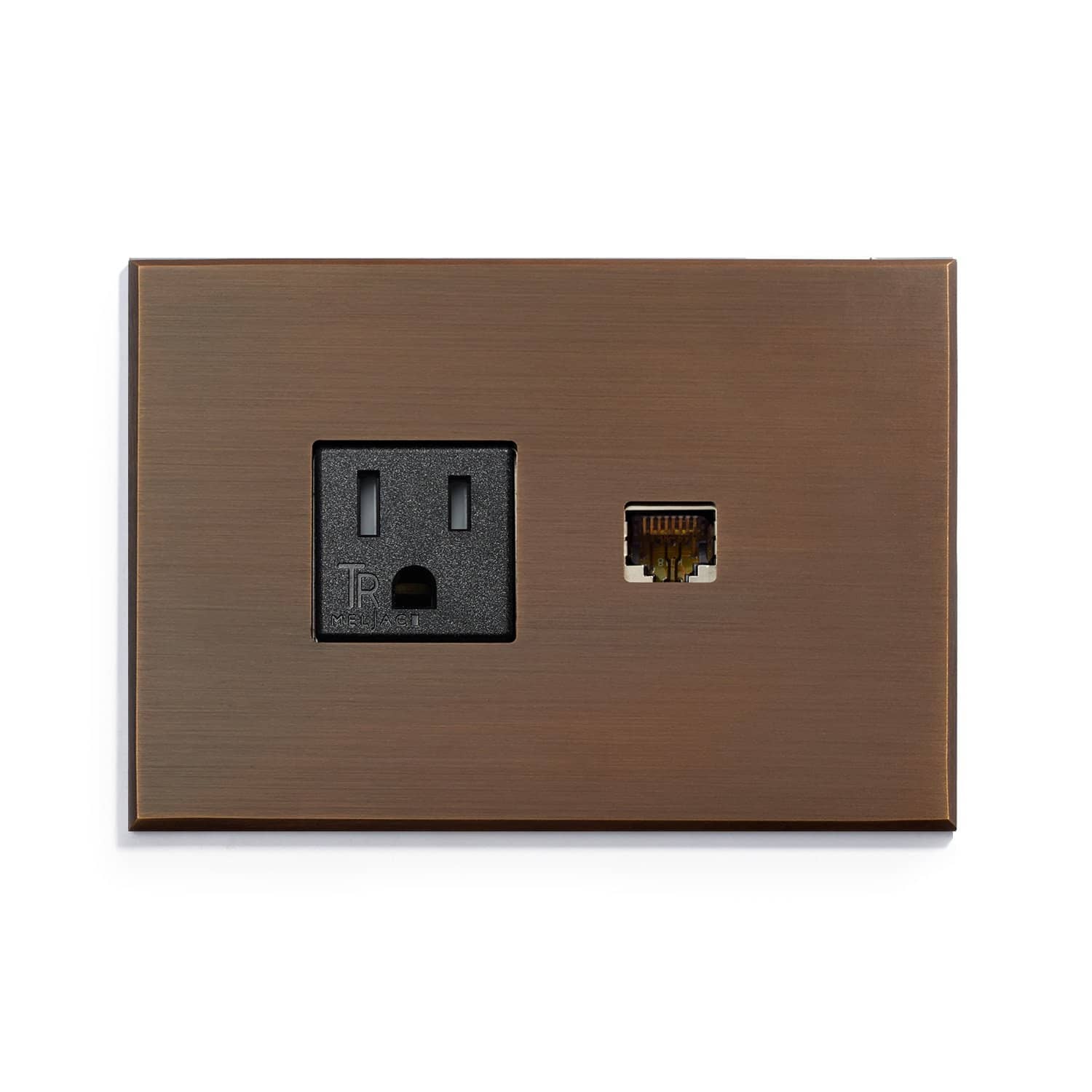

RJ45 data
RJ11 phone
Keystone cutouts
HDMI
For additional low-voltage port options and configuration possibilities, please contact Meljac North America.
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
View additional back box information
Certifications
UL/CSA Certified.
Plate Finish
Available to order in all metallic finishes and RAL powdercoats.
Screw Type
Hidden or visible
Edge Type
Beveled or straight
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful installation we recommend that wall outlet plates be purchased by the party responsible for installation.
For quote requests, please fill out the appropriate specification sheet and submit through the following link:
AVAILABILITY / LEAD-TIMES
All Meljac products are made-to-order at our workshops in France.
Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times for the most up-to-date information.
