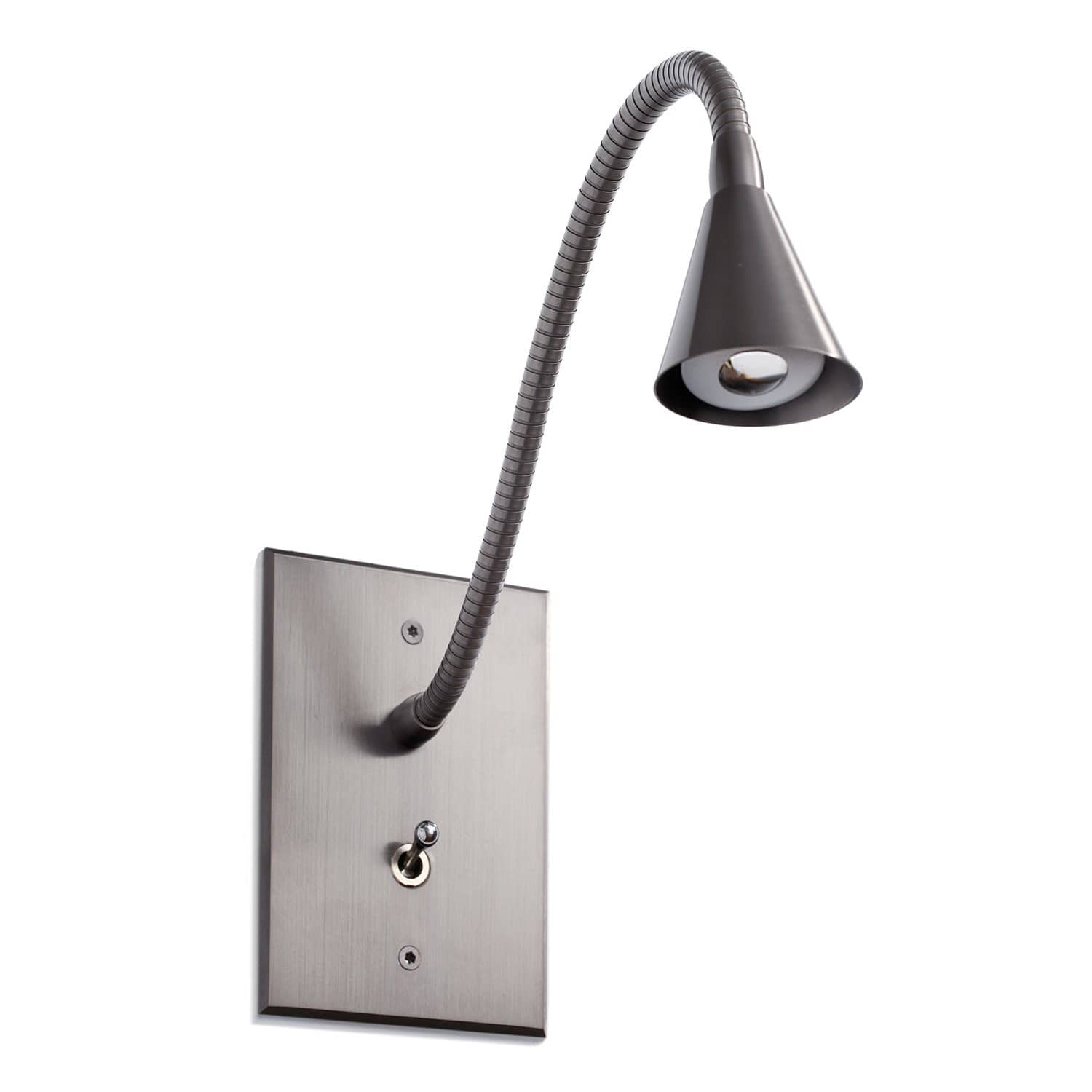

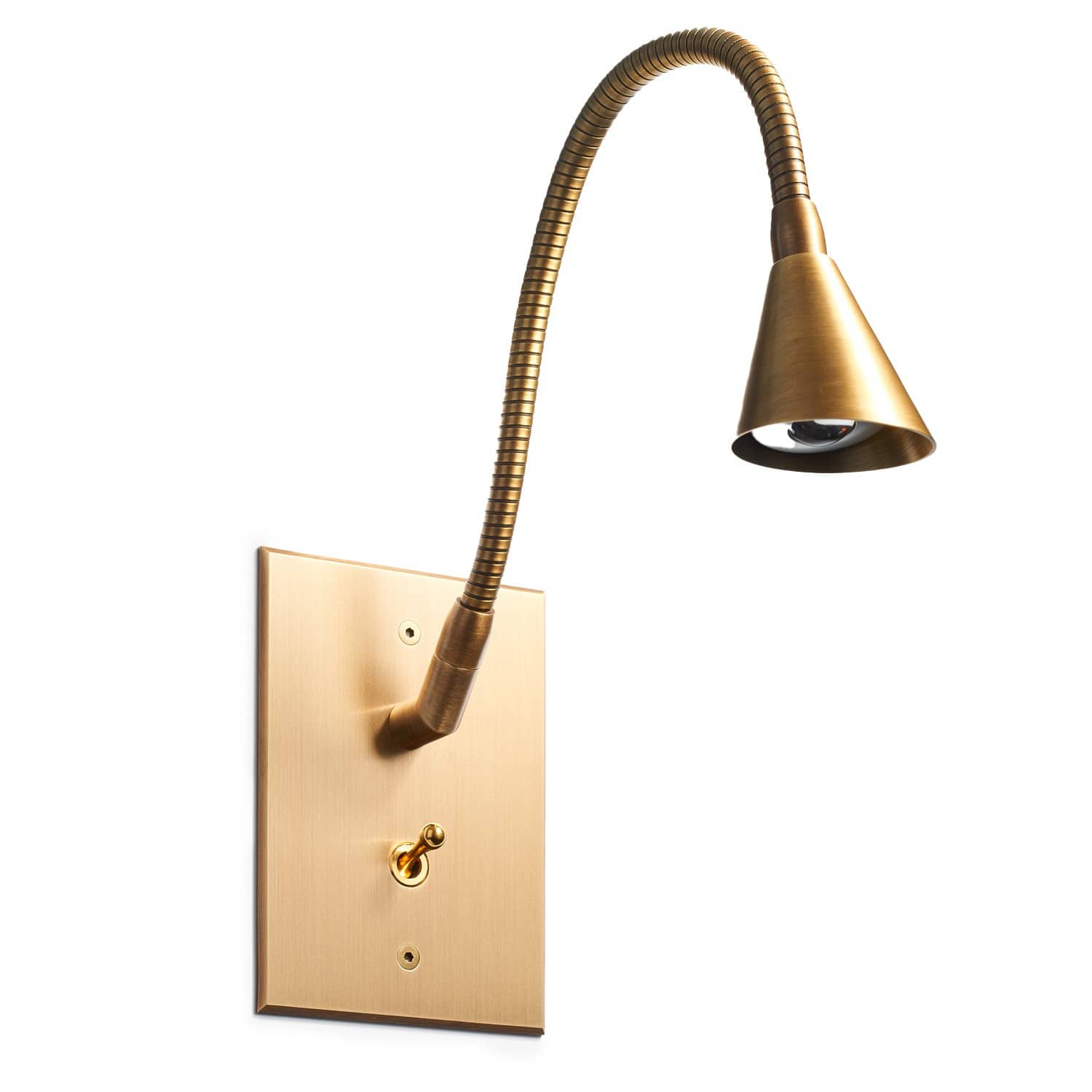

Tulipe Reading Lamp | 82 x 117
Bedside elegance and convenience that can be used on any project. A flexible arm provides soft, directed light.
Tulipe
Tulipe Reading Lamp | 82 x 117
Bedside elegance and convenience that can be used on any project. A flexible arm provides soft, directed light.
Plate dimensions
width = 3.2″ (82 mm)
height = 4.6″ (117 mm)
depth/thickness = 0.11″ (3 mm)
Lamp information
3000K (soft white)
90 CRI
60-degree beam
Non-dimmable
Recom RACD04-350 4.2W 350 mA Constant Current transformer (included, pre-wired to switch)
Switch options
For wiring to main-electrical line:
-Latching toggle (VV) | open or closed
-Latching push button (BPE) | open or closed
For wiring to centralized lighting control system via contact closure:
-Momentary toggle (INV) |three-positions/returns-to-center |two contact closures
-Momentary push button (BP) | normally-open | one contact closure
May also be ordered without a switch
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
View additional back box information
Certifications
Uses UL-recognized components.
Plate finish
Available to order in select metallic finishes from the Meljac finish catalog.
RAL powdercoats are not available with Meljac reading lamps.
Switch finish
Default
Brass push buttons or toggles with warm plate finishes (bronze, brass)
Chrome push buttons or toggles with cool plate finishes (nickel, chrome, gunmetal, copper)
Premium*
Black Chrome
Push buttons or toggles can be finished to match the plate. Only available with select finishes.
*Additional lead-time and cost. Please contact Meljac North America for more details.
Screw type
Visible or hidden*.
*proprietary MELUS11782-A box is required for hidden screws.
Edge type
Beveled or straight
Lamp neck
Standard length of lamp neck is 8.85″ (225 mm). This can also be specified up to 15″ (381 mm).
Lamp connection can be specified directly to the plate or with a 135-degree bend angle.
PURCHASING
Direct ordering through Meljac North America.
For quote requests, please fill out a specification sheet and submit through the following link:
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
