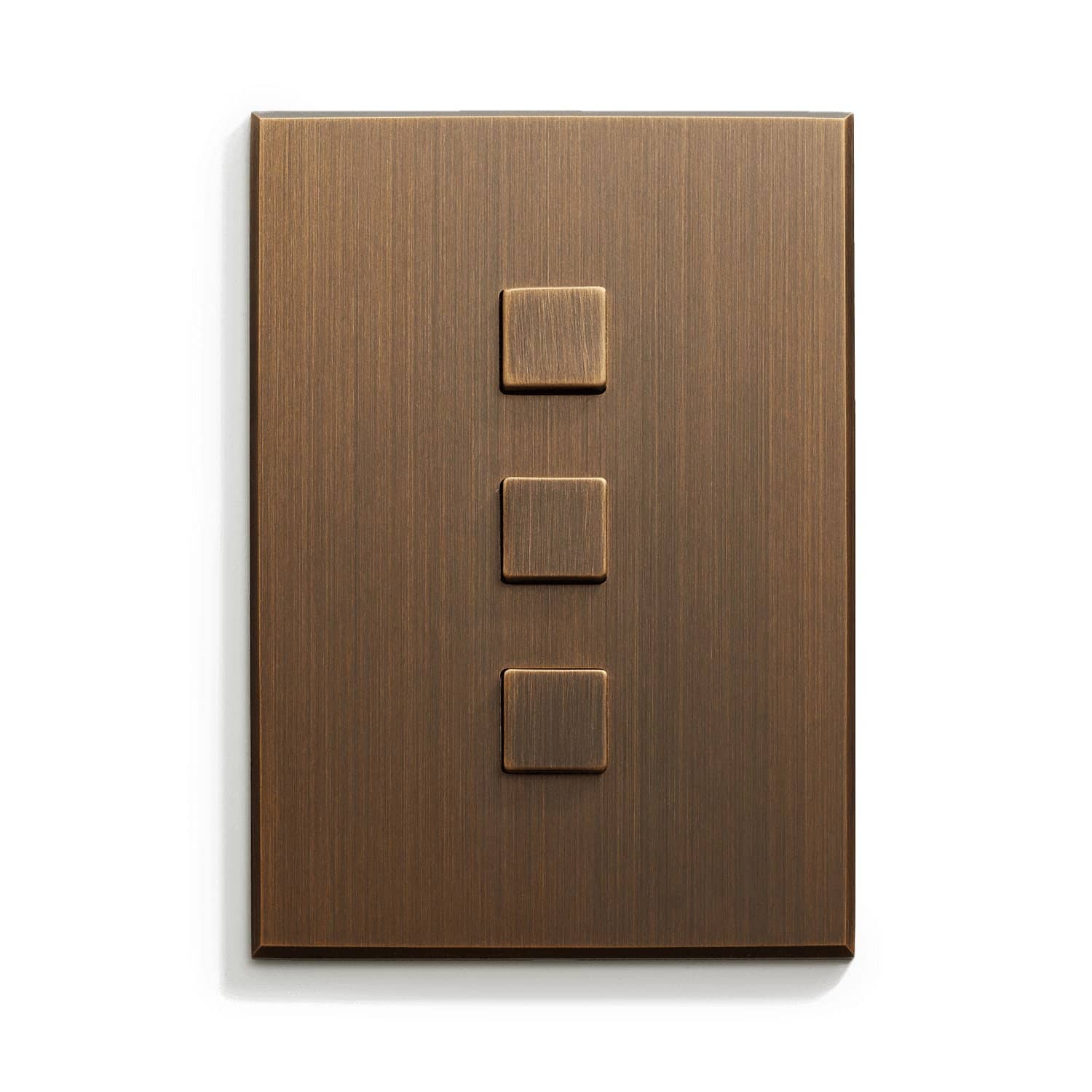

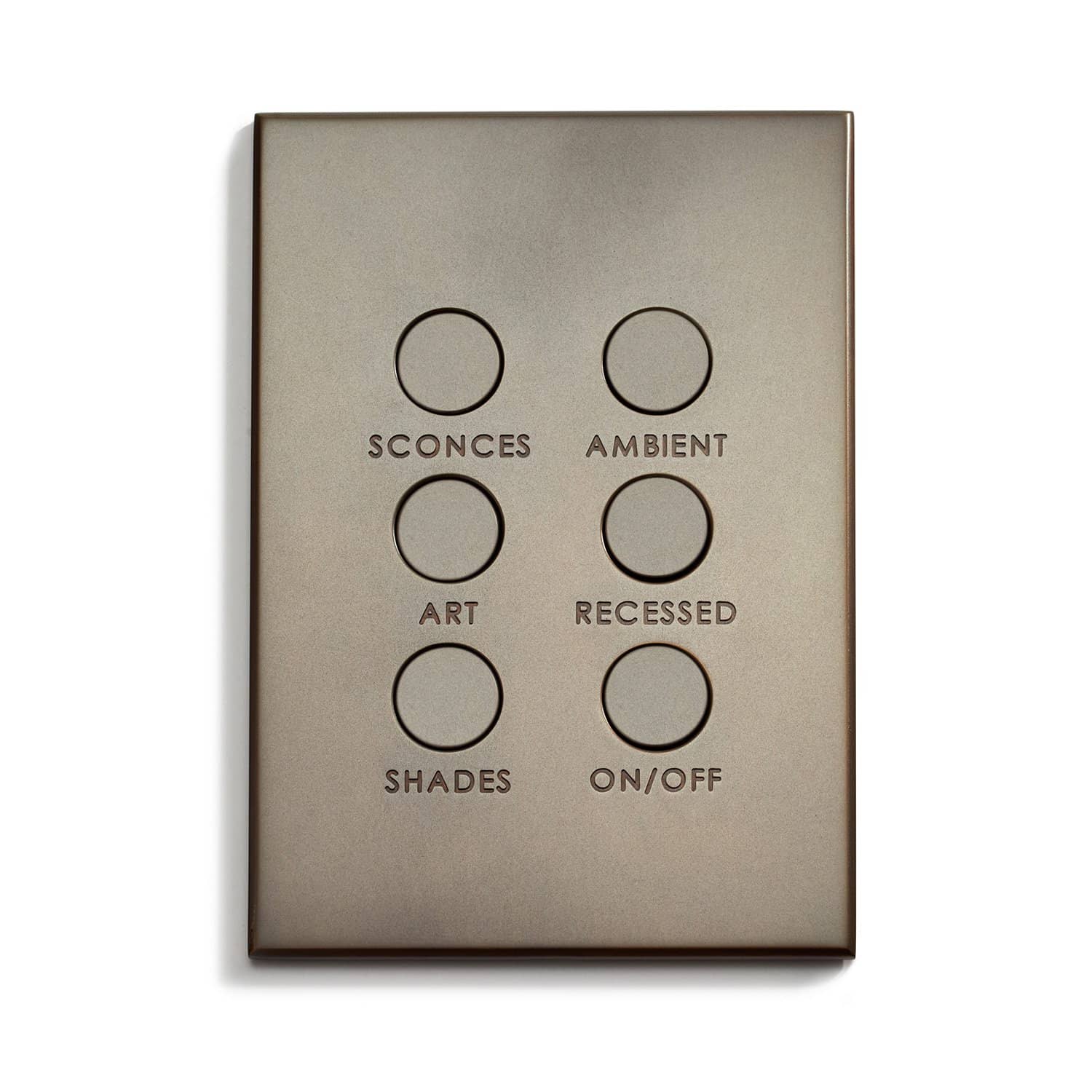

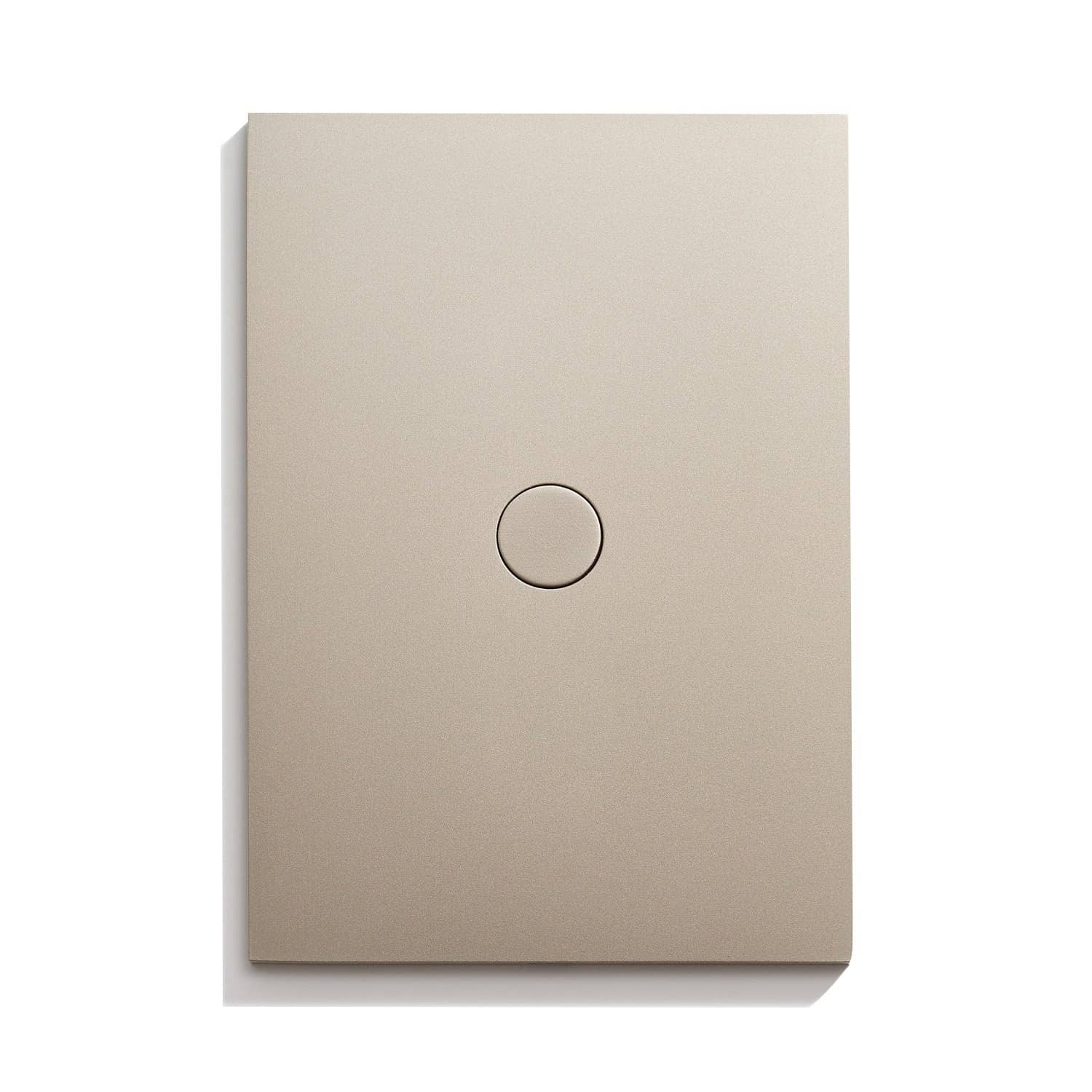

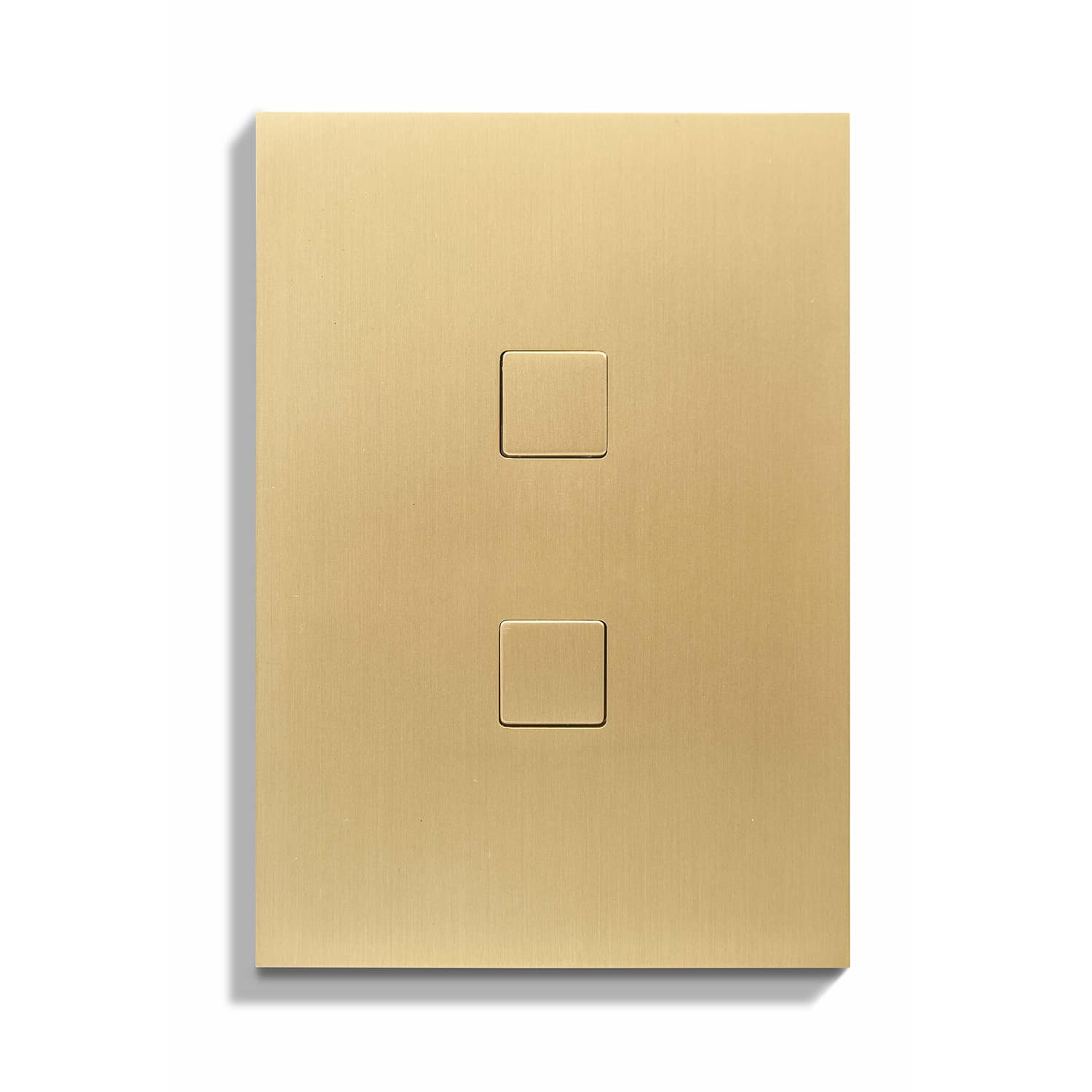

Damier Keypad | 82 x 117
Meljac’s most minimal keypad solution. The Damier collection offers low-profile push buttons with paired-back plate details that perfectly complement contemporary environments.
Damier Keypad | 82 x 117
Meljac’s most minimal keypad solution. The Damier collection offers low-profile push buttons with paired-back plate details that perfectly complement contemporary environments.
Plate dimensions
3.2″ x 4.6″ x .11″ | 82 x 117 x 3 mm
Switch options
1-6 push buttons
Push buttons can be configured according to specification, with respect to spatial limitations.
Available switch-type:
Momentary push button (BP) – normally-open – one contact closure
Push Button Shape – square or round
Push Button Profile – raised (default) or flush
Low-voltage dry contact push buttons for use in class-2 wiring circuits only and are not to be used with standard 120V electrical wiring.
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
View additional back box information
Certifications
UL/CSA Listed.
Plate finish
Available to order in all metallic finishes and RAL powdercoats.
Switch finish
For the Damier collection, button finishes are matched to the plate finish by default.
If desired, button finish can be specified with an alternative finish to the plate finish.
Screw type
Hidden (default) or visible
Edge type
Straight (default) or beveled
Engravings
Numerous engraving fonts, sizes and styles available. See Engraving Options page for more details.
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful project outcome keypads must be purchased through the entity responsible for system integration.
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
