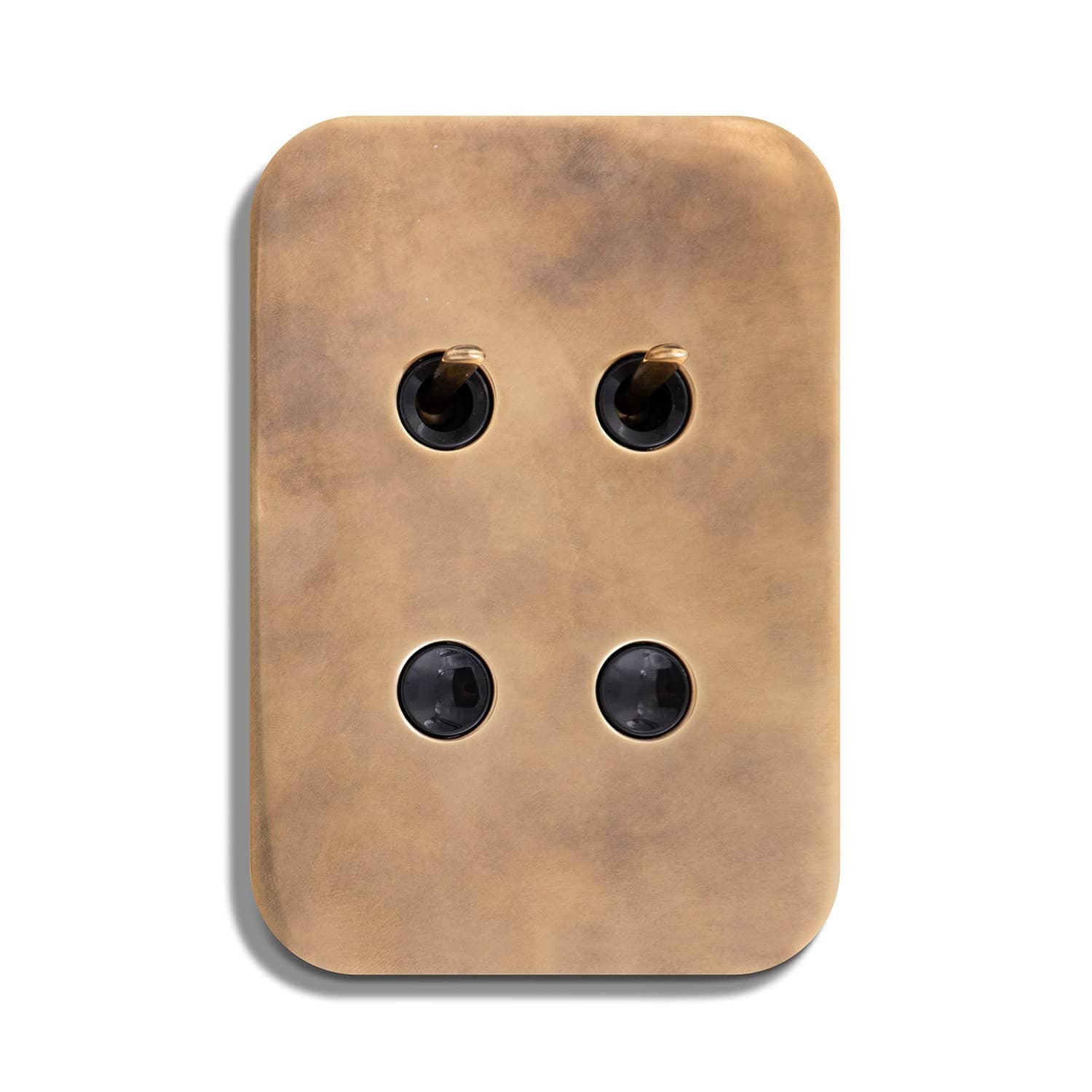

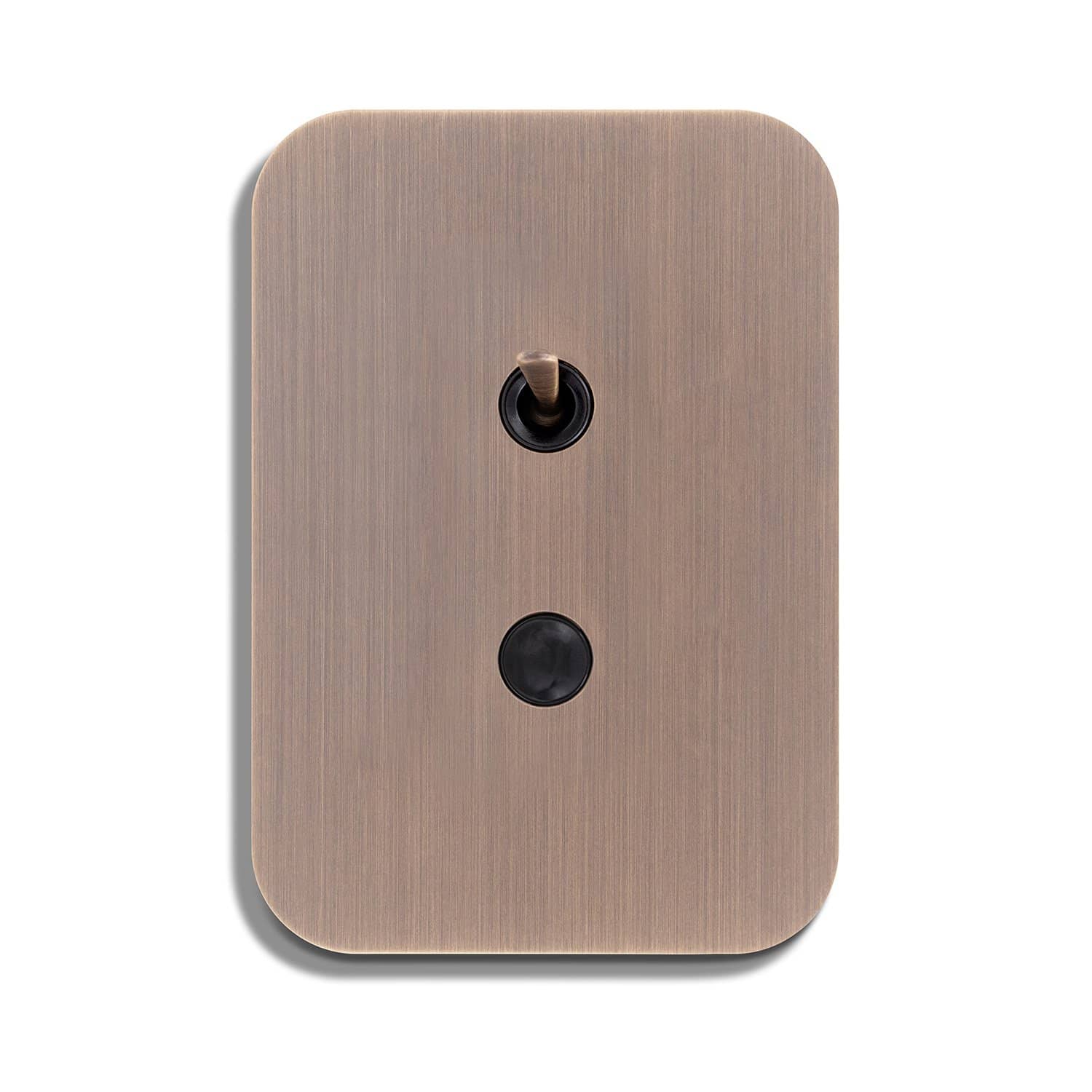

Solaris Keypad | 82 x 120
Developed in collaboration with Marc Newson, the Solaris collection stands out with curved plate edges, a slender, flattened toggle and a flush concave push button.
Solaris Keypad | 82 x 120
Developed in collaboration with Marc Newson, the Solaris collection stands out with curved plate edges, a slender, flattened toggle and a flush concave push button.
Plate dimensions
3.3″ x 4.7″ x .11″ | 84 x 120 x 3 mm
Switch options
1-4 toggles or push buttons
Push buttons and toggles can be configured and combined according to specification, with respect to spatial limitations.
Available switch-types:
Momentary toggle (INV) | three-positions / returns-to-center – two contact closures
Momentary push button (BP) | normally-open – one contact closure
Low-voltage dry contact toggles and push buttons for use in class-2 wiring circuits only and are not to be used with standard 120V electrical wiring.
Back box information
It is recommended to use a Meljac back box with the 82 x 117 mm plate size. This ensures optimal component spacing and configuration options.
MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit
Metal boxes are stocked and available for immediate shipping.
Plastic boxes are made-to-order. Allow 7-10 business days from purchase.
Third-party back boxes
82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes. However, this will reduce the spacing of components and limit select configurations.
Plate finish
The Solaris collection is only available in select finishes from the Meljac finish catalog.
Switch finish
Standard
Toggle switch lever matches plate finish; black high-gloss base
Black high-gloss push button
Premium*
Toggle base or push buttons matched to plate finish
*Additional lead-time and cost
Screw type
Hidden
Edge type
Straight (default)
Engravings
Numerous engraving fonts, sizes and styles available. See Engraving Options page for more details.
PURCHASING
Available to order directly from Meljac North America.
To help ensure a successful project outcome keypads must be purchased through the entity responsible for system integration.
AVAILABILITY / LEAD-TIMES
Meljac products are made-to-order at our workshops in France.
Lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times section of our FAQs page for the most up-to-date information.
