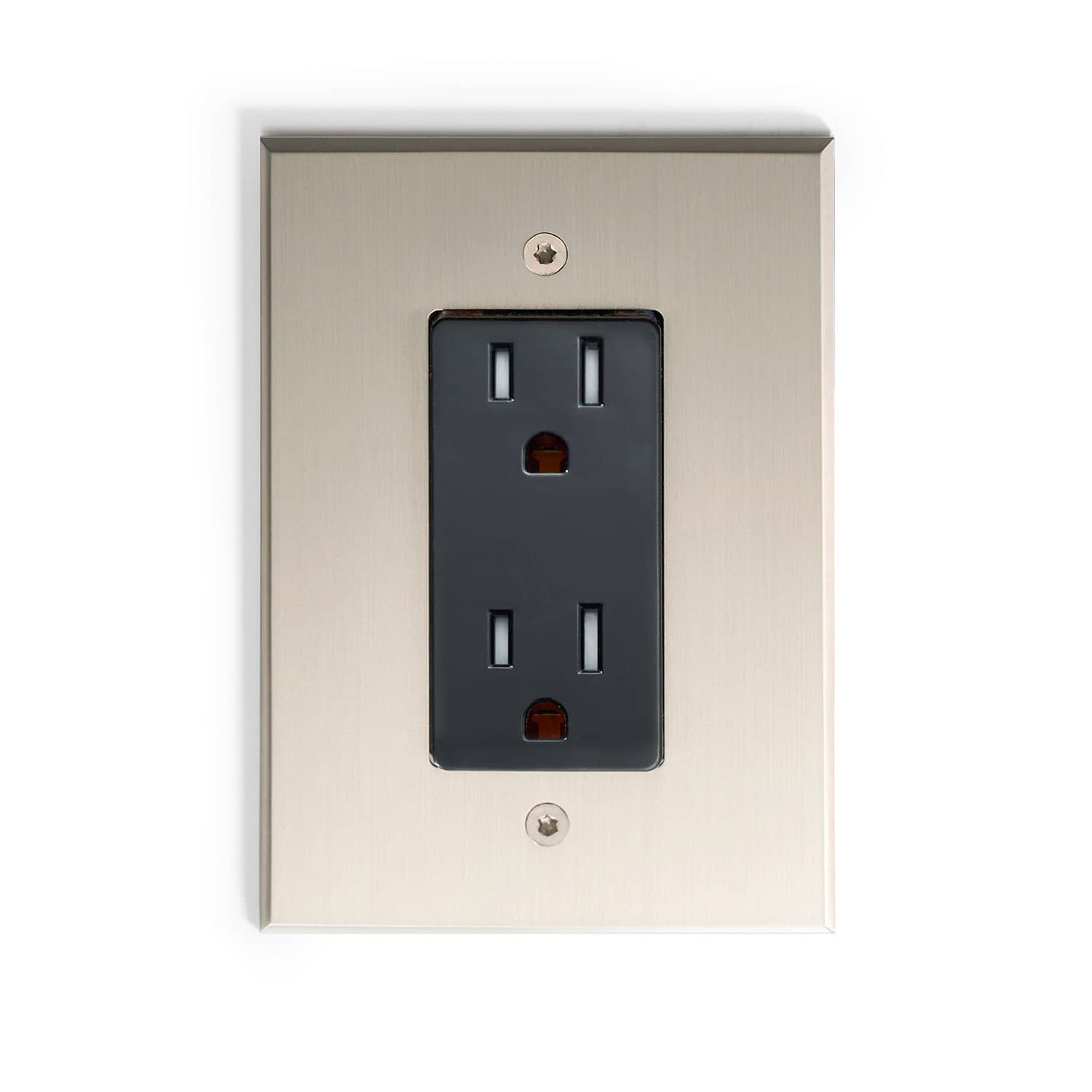

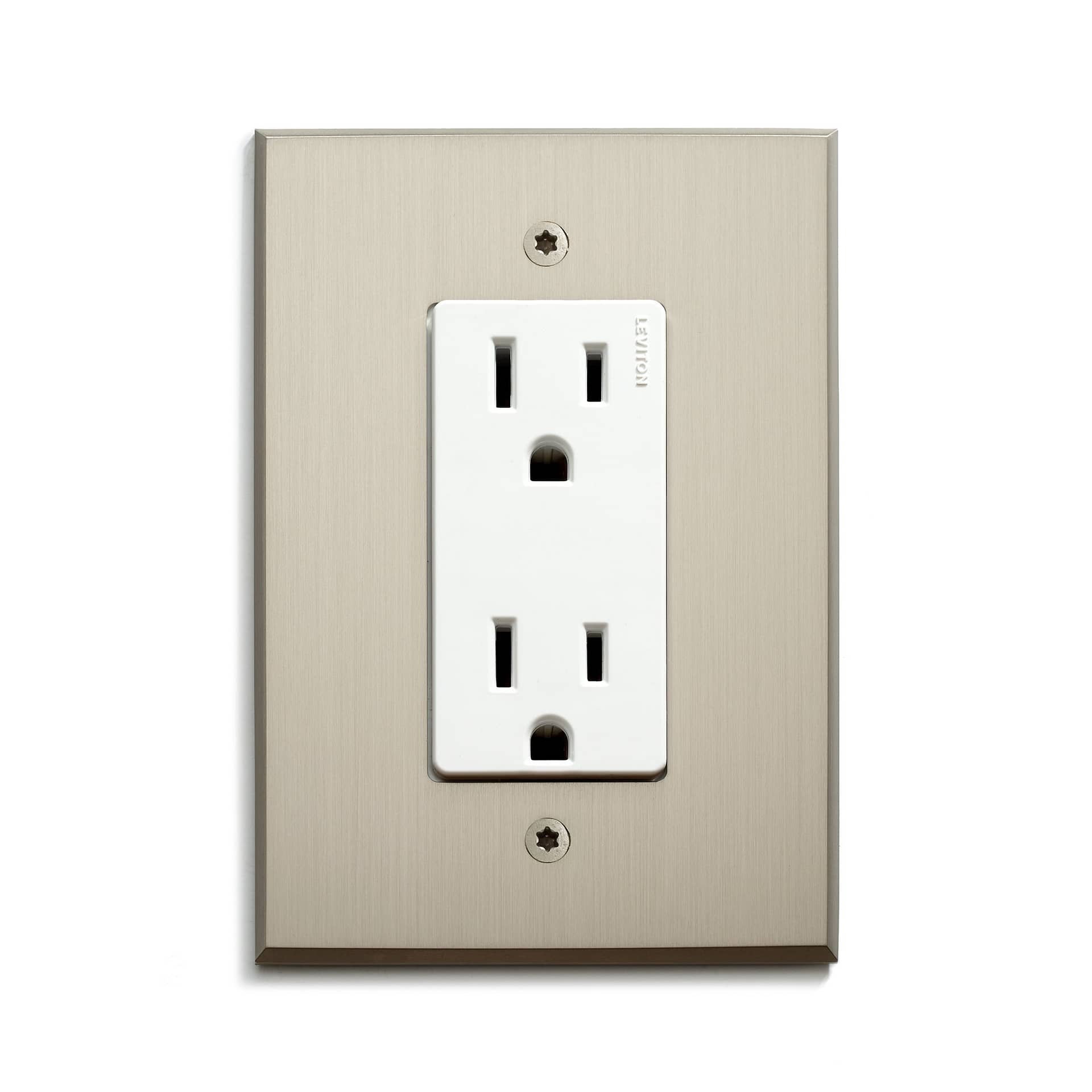

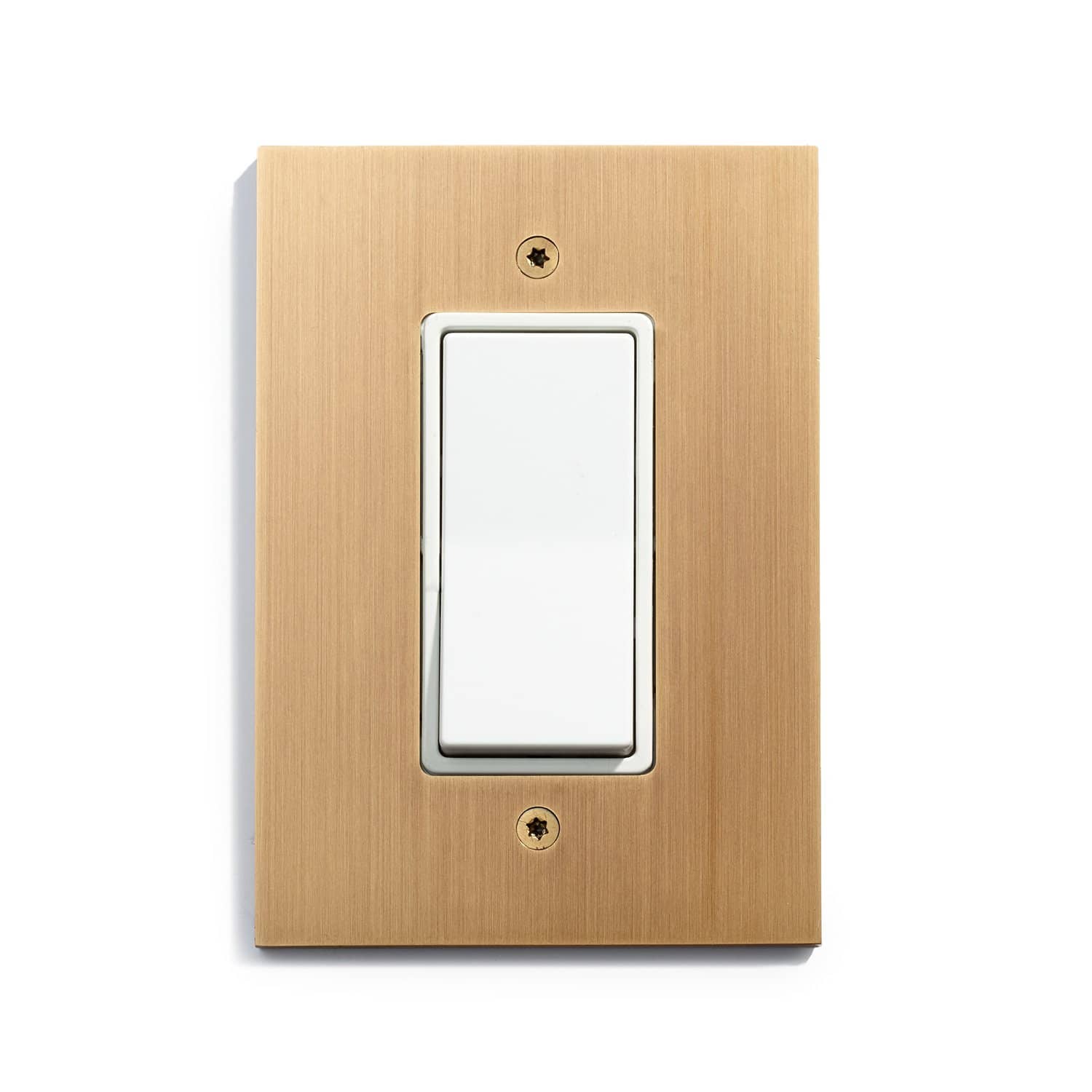

DECORA / VISIBLE SCREWS | 82 x 117
An elevated standard: Meljac’s third-party compatible cover plates.
DECORA / VISIBLE SCREWS | 82 x 117
An elevated standard: Meljac’s third-party compatible cover plates.
Plate dimensions
width = 3.2″ (82 mm)
height = 4.6″ (117 mm)
depth/thickness = .16″ (4 mm)
Port options
Cover plate only.
Compatible with standard Decora*/decorator-style GFCI receptacles, switches and dimmers.
Cutout width = 1.34″ (34 mm)
Cutout height = 2.65″ (67.40 mm)
*Decora is a Leviton trademark term.
Cutout can be modified by request to accommodate Lutron New Architectural style devices.
Back box information
Compatible with any North American single-gang back box.
Plate Finish
Available to order in all metallic finishes and RAL powdercoats.
Screw Type
Decora-cutout cover plates with visible screws require a .16″ (4 mm) plate thickness.
Edge Type
Beveled or straight
PURCHASING
Direct ordering through Meljac North America.
To ensure a successful installation we recommend that wall outlet plates be purchased by the party responsible for installation.
For quote requests, please fill out the appropriate specification sheet and submit through the following link:
AVAILABILITY / LEAD-TIMES
All Meljac products are made-to-order at our workshops in France.
Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times for the most up-to-date information.
