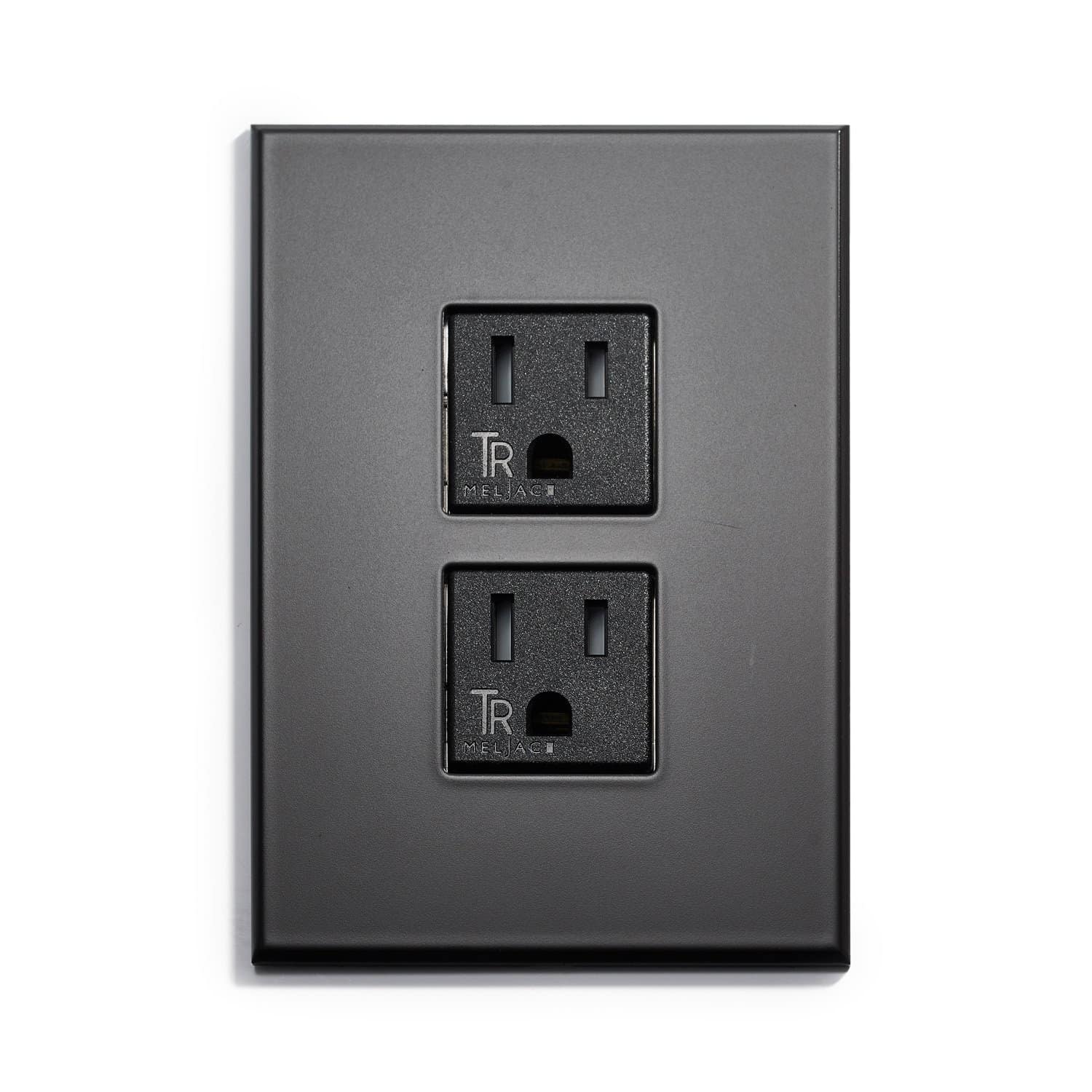

DOUBLE WALL | 82 x 117

Meljac’s signature wall outlet solutions: crafted for you.

Black Matte Nickel (Nickel Noir Mat)

Hidden Screws | Beveled Edge
MNA Catalog # WO-H-821173-2P(15B)-B

DOUBLE WALL | 82 x 117

Meljac’s signature wall outlet solutions: crafted for you.

Product details

Plate dimensions

width = 4.6″ (117 mm)
height = 3.2″ (82 mm)
depth/thickness = .11″ (3 mm)

Port options

1-2 receptacles or ports

Ports can be configured and combined according to specification, with respect to spatial limitations.

Options include:

15A 125VAC tamper-resistant (TR) receptacle (black or white)
15A 125VAC tamper-resistant (TR) receptacle  (black)
USB-A charging (2.1A 5VDC)
USB-C charging (10W 2A 5VDC)
RJ45 data
RJ11 phone
Keystone cutouts
HDMI

For additional low-voltage port options and configuration possibilities, please contact Meljac North America.

Back box information

It is recommended to use a Meljac back box with the 82 x 117 mm plate size.  This ensures optimal component spacing and configuration options.

MELUS11782-A | metal | new construction style
MELUS11782-FDM | plastic | cut-in/retrofit

Metal boxes are stocked and available for immediate shipping.

Plastic boxes are made-to-order.  Allow 7-10 business days from purchase.

Third-party back boxes

82 x 117 mm plates can alternatively be ordered for compatibility with third-party back boxes.  However, this will reduce the spacing of components and limit select configurations.

View additional back box information

Certifications

UL/CSA Certified.

Finish + custom options

Plate Finish

Available to order in all metallic finishes and RAL powdercoats.

View finishes

Screw Type

Hidden or visible

View screw options

Edge Type

Beveled or straight

View edge details

Availability + purchasing

PURCHASING

Available to order directly from Meljac North America.

To help ensure a successful installation we recommend that wall outlet plates be purchased by the party responsible for installation.

For quote requests, please fill out the appropriate specification sheet and submit through the following link:

Quote Requests

AVAILABILITY / LEAD-TIMES

All Meljac products are made-to-order at our workshops in France.

Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.

Please see the Current Lead Times for the most up-to-date information.
