SINGLE FLOOR | 100D

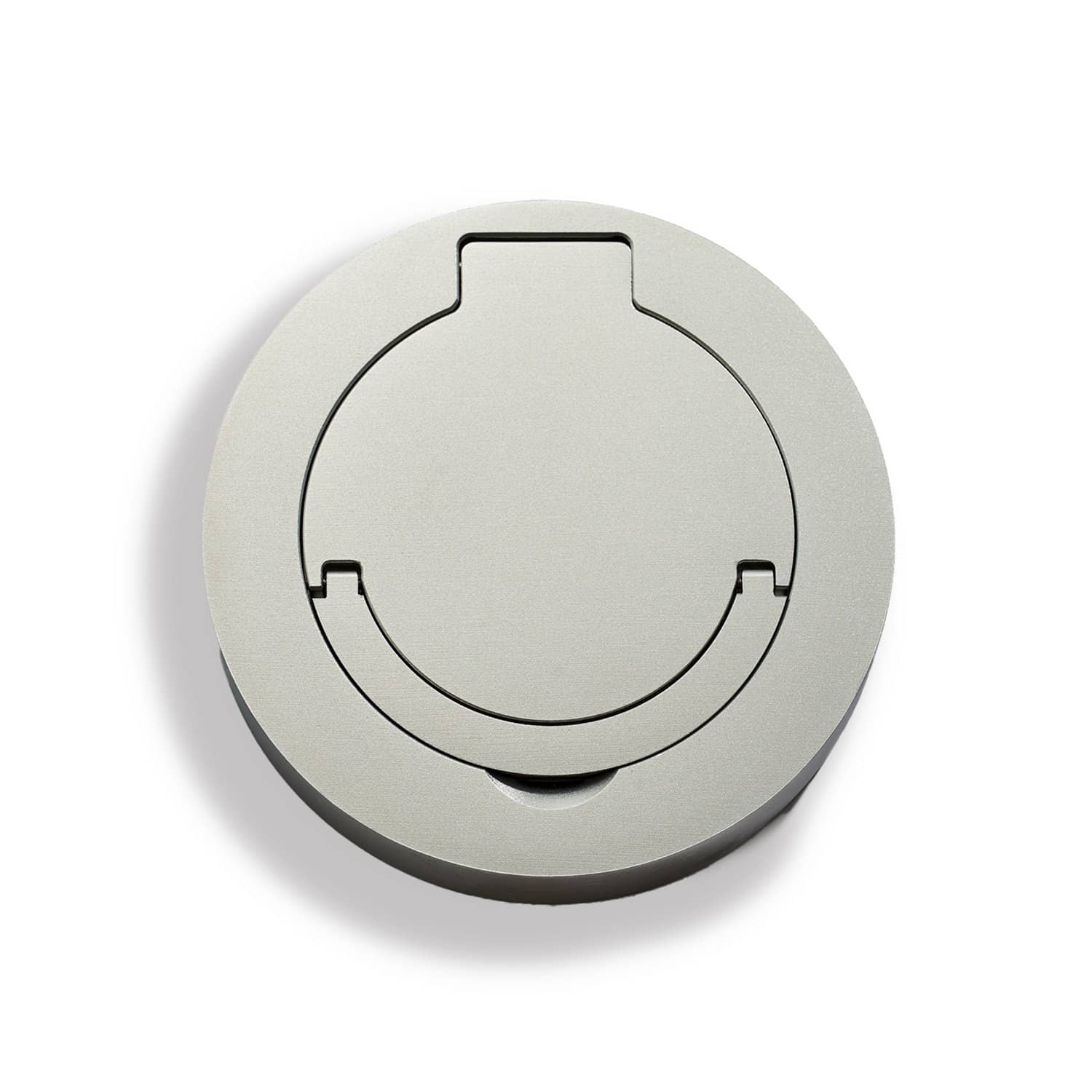

A supreme solution: Meljac’s flush-mounted floor box for new construction applications.
SINGLE FLOOR | 100D
A supreme solution: Meljac’s flush-mounted floor box for new construction applications.
Plate dimensions
diameter = 3.94″ (100 mm)
depth/thickness = .55″ (14 mm)
Port options

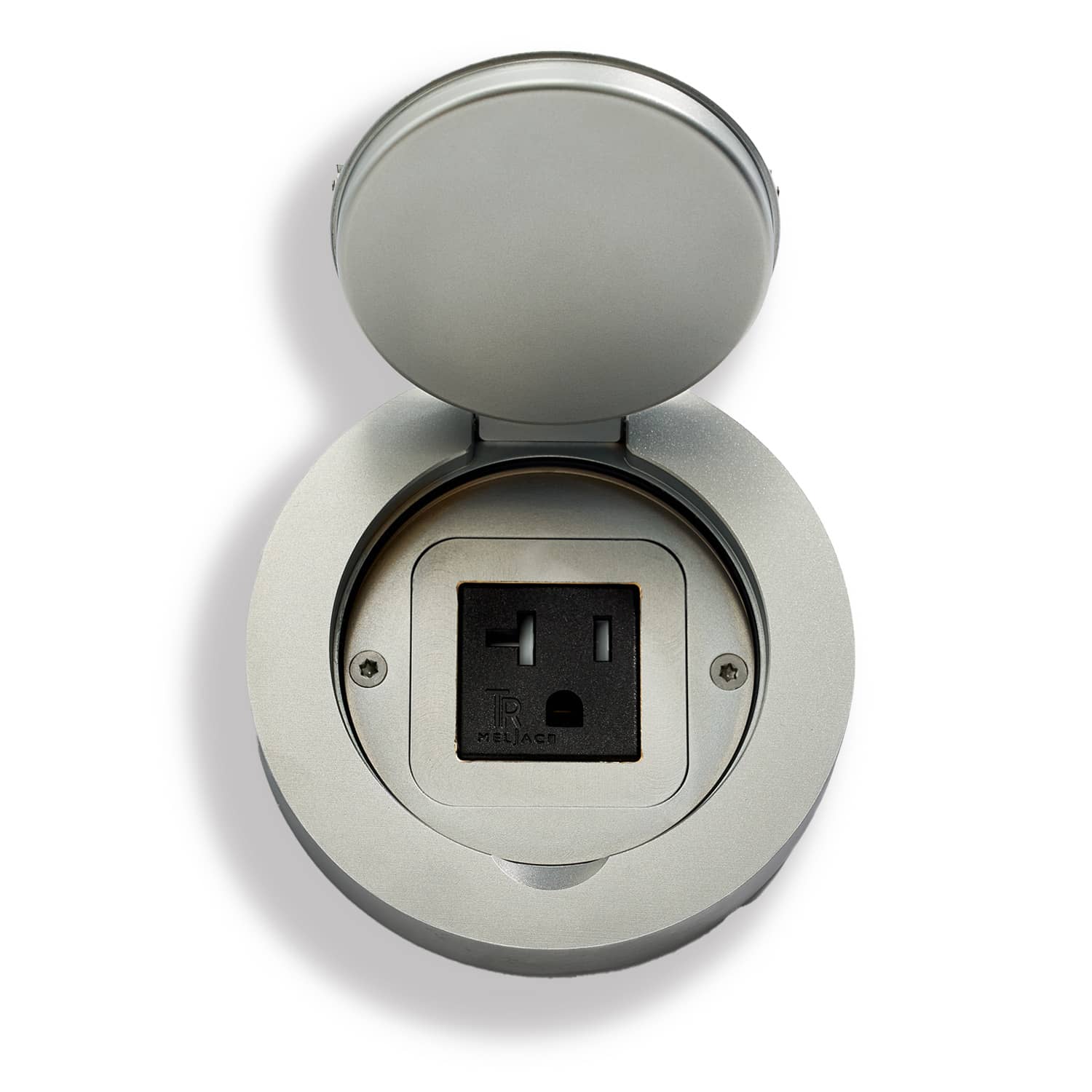

1 receptacle or port
Options include:
15A 125VAC TR Receptacle (Black or White)
20A 125VAC TR Receptacle (Black)
USB-A Charging (2.1A 5VDC)
USB-C Charging (10W 2A 5VDC)
RJ45 Data Receptacle
RJ11 Phone Jack Receptacle
Keystone Cutout
Back box information
Proprietary MELUSFL100A floor box is required. Designed for new-construction only.
Stocked and available for immediate shipping
Certifications
UL/CSA Certified.
Plate Finish
Available to order in select metallic finishes from the Meljac finish catalog.
Note: certain finishes, including RAL powdercoats, are not available with Meljac floor outlets.
PURCHASING
Direct ordering through Meljac North America.
To ensure a successful installation we recommend that floor outlet plates be purchased by the party responsible for installation.
For quote requests, please fill out the appropriate specification sheet and submit through the following link:
AVAILABILITY / LEAD-TIMES
All Meljac products are made-to-order at our workshops in France.
Due to the custom nature of our products, lead-times may vary depending on your selected plate options and current order volumes.
Please see the Current Lead Times for the most up-to-date information.
